R3YD
ActiveBivar Inc.

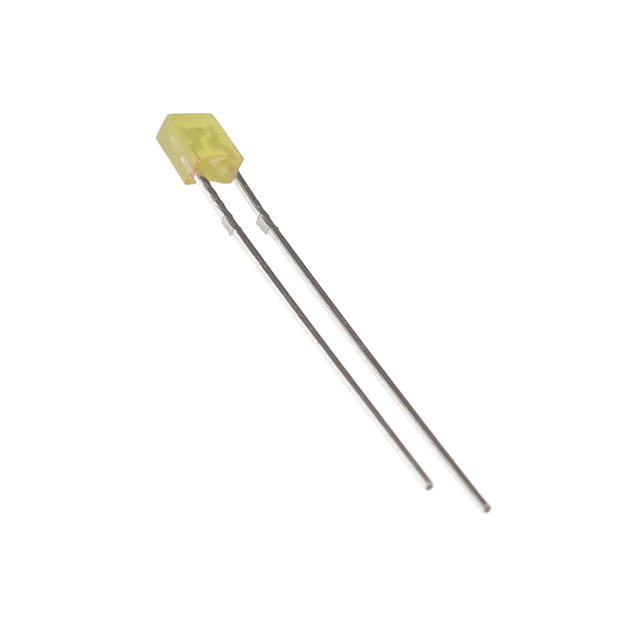

LED, THROUGH HOLE, 2X3MM RECT YELLOW, 590NM, 4MCD, DIFFUSED LENS, 100 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R3YD
ActiveBivar Inc.
LED, THROUGH HOLE, 2X3MM RECT YELLOW, 590NM, 4MCD, DIFFUSED LENS, 100 DEG VIEWING ANGLE / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R3YD |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | Yellow |
| Lens Size [x] | 3.3 mm |
| Lens Size [y] | 1.9 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 4 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R3YD Series
Yellow LED Indication - Discrete 2V Radial
