C6358A.41.10
ActivePrysmian Group

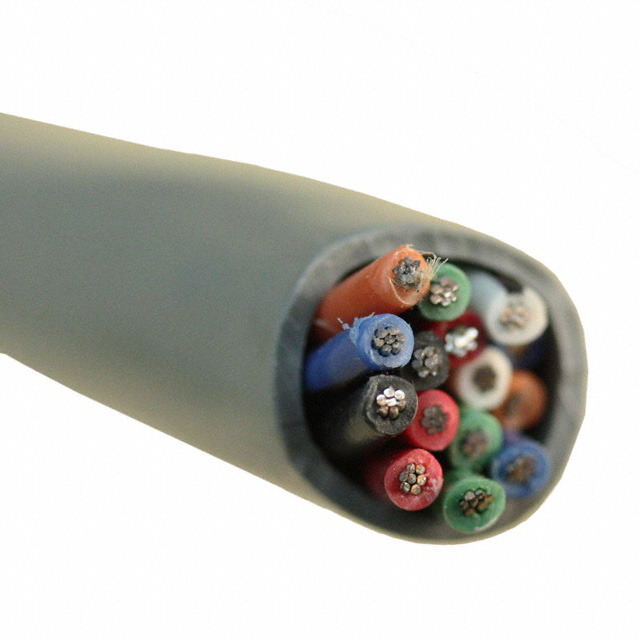

CABLE 15COND 20AWG GRAY 50'
Deep-Dive with AI
Search across all available documentation for this part.
C6358A.41.10
ActivePrysmian Group
CABLE 15COND 20AWG GRAY 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6358A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 9.96 mm |
| Jacket (Insulation) Diameter [diameter] | 0.392 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 15.24 m, 304.8 m |
| Length | 1000 ft |
| Length [x] | 500 ', 50 ft, 100 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 339.16 | |
| 1 | $ 258.93 | |||
| 1 | $ 1475.07 | |||
| 5 | $ 1382.88 | |||
| 5 | $ 301.48 | |||
| 5 | $ 211.85 | |||
| 10 | $ 164.77 | |||
| 10 | $ 273.21 | |||
| Spool | 1000 | $ 2.30 | ||
| 2000 | $ 2.19 | |||
| 3000 | $ 2.12 | |||
| 5000 | $ 1.88 | |||
Description
General part information
C6358 Series
15 Conductor Multi-Conductor Cable Gray 20 AWG 50.00' (15.24m)
Documents
Technical documentation and resources
No documents available
