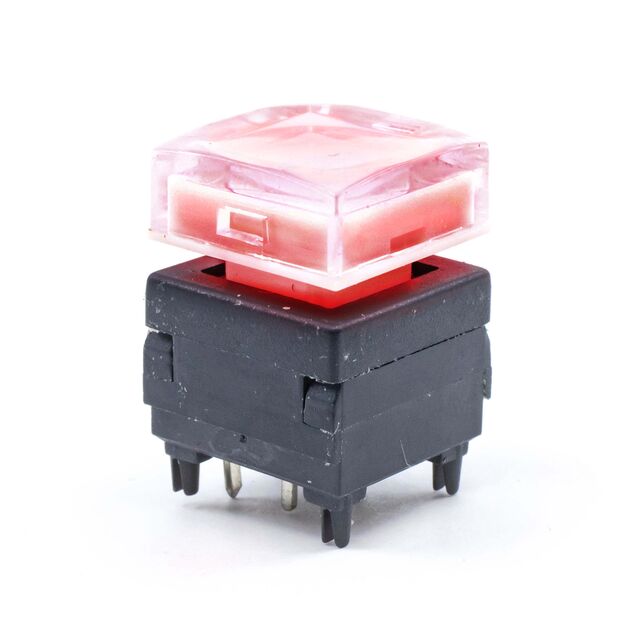

LP6OA1ASRW

Active

E-Switch

SWITCH PUSH SPST-NO 12MA 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 12MA 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LP6OA1ASRW

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	12 mA
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Red/White
Illumination Voltage (Nominal)	1.95 VDC, 3.5 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Mounting Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Illumination Voltage (Nominal)	Switch Function	Illumination Type, Color	Mechanical Life	Circuit	Voltage Rating - DC	Color - Actuator/Cap	Type	Current Rating (Amps)	Electrical Life	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch LP6OA1ASRW	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC 3.5 VDC	Off-Mom	LED Red/White	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASRGB	Through Hole		-20 C	70 °C	PC Pin	Button Square	1.7 VDC 1.8 VDC 2.7 VDC	Off-Mom	Blue Green LED Red	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASYB	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC 3.3 VDC	Off-Mom	Blue LED Yellow	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles
E-Switch LP6OA1ASWW	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	3.5 VDC	Off-Mom		200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles	LED	White/White
E-Switch LP6OA1ASRY	Through Hole	No Marking	-20 C	70 °C	PC Pin	Button Square	1.95 VDC	Off-Mom	LED Red/Yellow	200000 Cycles	SPST-NO	12 V	Clear	Illuminated Standard	12 mA	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.54

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole

Technical documentation and resources

No documents available
