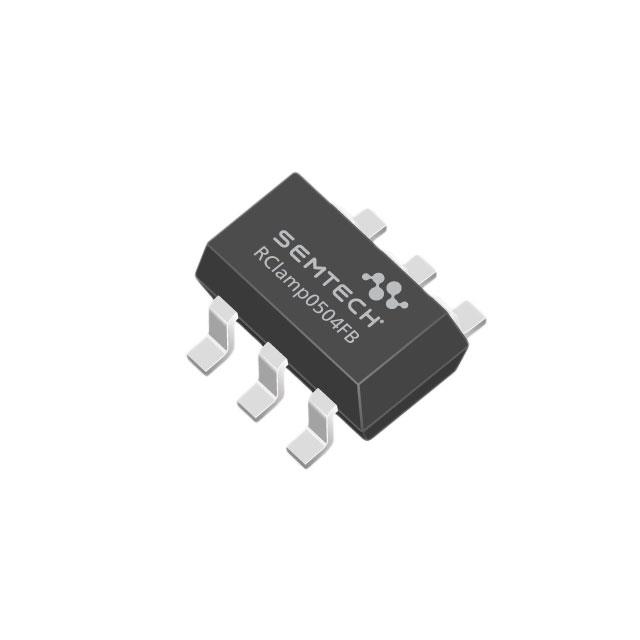

RCLAMP0504FBTCT

Active

Semtech Corporation

RAILCLAMP 4-LINE 5V 3PF 6A ESD SC-70 6L

Search across all available documentation for this part.

Active

Semtech Corporation

RAILCLAMP 4-LINE 5V 3PF 6A ESD SC-70 6L

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP0504FBTCT

Applications	USB
Capacitance @ Frequency	1.1 pF
Current - Peak Pulse (10/1000µs)	28 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	6-TSSOP, SC-88, SOT-363
Power - Peak Pulse	500 W
Power Line Protection	True
Supplier Device Package	SC-70-6
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	17.5 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Power - Peak Pulse	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Breakdown (Min) [Min]	Package / Case	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]
Semtech Corporation RCLAMP0504F.TCT	5 V	4	Steering	SC-70-6	23 V	150 W	3 pF	125 ¯C	-55 °C	Surface Mount	Ethernet HDMI USB OTG	6 V	6-TSSOP SC-88 SOT-363	6 A
Semtech Corporation RCLAMP0504P.TCT	5 V	4	Steering	SLP1616P6 (1.6x1.6)		150 W	1.9 pF	125 ¯C	-55 °C	Surface Mount	Ethernet Multimedia Card Interface USB OTG	6 V	6-UFDFN Exposed Pad	6 A	18 V
Semtech Corporation RCLAMP0504FBTCT	5 V	4	Steering	SC-70-6		500 W	1.1 pF	125 ¯C	-55 °C	Surface Mount	USB	6 V	6-TSSOP SC-88 SOT-363	28 A	17.5 V
