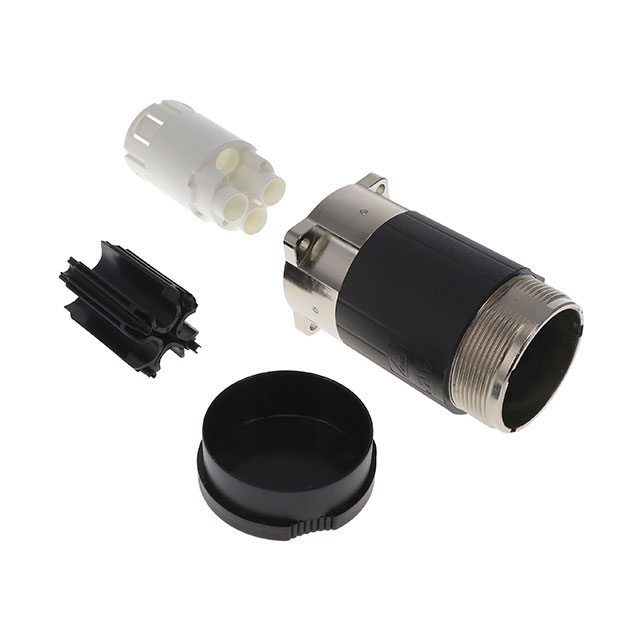

DEA003N00000001000

Active

TE Intercontec

CONN RCPT HSG MALE 8POS PNL MNT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 8POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DEA003N00000001000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M58-8
Shielding	Unshielded
Type	For Male Pins

Part	Contact Shape	Shell Finish	Orientation	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Includes	Mounting Feature	Shell Material	Material Flammability Rating	Insert Material	Note	Ingress Protection	Shielding	Shell Size - Insert	Fastening Type	Connector Type	Housing Color
TE Intercontec DEA003N00000001000	Circular	Nickel	Keyed	For Male Pins	-20 C	130 °C	3	8	4	PE	1 Connector 1 O-Ring	Flange	Zinc Die Cast	UL94 V-0	Polybutylene Terephthalate (PBT)	Contacts Not Included	IP66/IP67	Unshielded	M58-8	Push-Twist	Receptacle Housing	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
