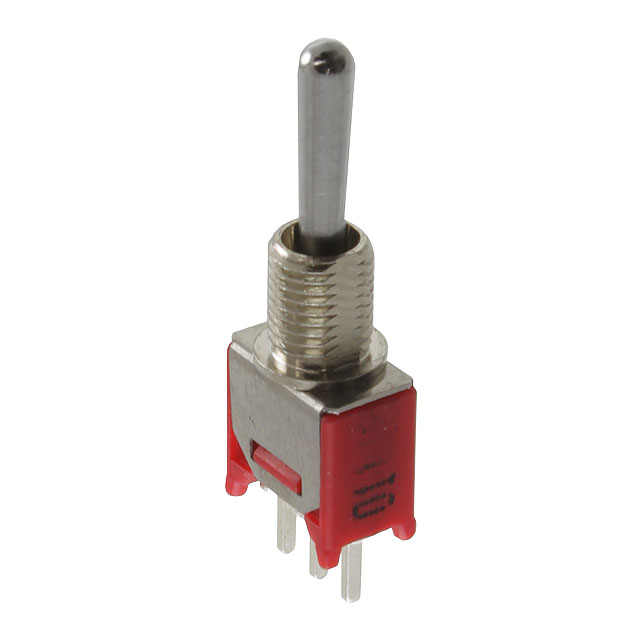

200MSP3T1B1M2QE

Active

E-Switch

28V 120V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

200MSP3T1B1M2QE

Active

E-Switch

28V 120V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	200MSP3T1B1M2QE

Actuator Length [x]	9.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

200MSP3 Series

Part	Switch Function	Bushing Thread	Current Rating (Amps)	Illumination	Actuator Type	Actuator Length [x]	Mounting Type	Termination Style	Voltage Rating - AC	Features	Electrical Life	Voltage Rating - DC	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Panel Cutout Dimensions [diameter]
E-Switch 200MSP3T2B2M7QE	On-Off-On	Unthreaded	3 A	Non-Illuminated	Standard Round	5.33 mm	Right Angle Through Hole Vertical	PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT
E-Switch 200MSP3T21B3M6QEH	On-Off-On	10-48	3 A	Non-Illuminated			Panel Mount Right Angle	PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	4.95 mm
E-Switch 200MSP3T1B2M2QE	On-Off-On	Unthreaded	3 A	Non-Illuminated	Standard Round	9.4 mm	Through Hole	PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT
E-Switch 200MSP3T2B3M7QE	On-Off-On	10-48	3 A	Non-Illuminated	Standard Round	5.33 mm	Panel Mount Right Angle Vertical	PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	4.95 mm
E-Switch 200MSP3T2B4M2RE	On-Off-On	Unthreaded	0.4 VA	Non-Illuminated	Standard Round	5.33 mm	Through Hole	PC Pin	20 V	Epoxy Sealed Terminals	30000 Cycles	20 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT
E-Switch 200MSP3T1B1M2QE	On-Off-On	10-48	3 A	Non-Illuminated	Standard Round	9.4 mm		PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	4.95 mm
E-Switch 200MSP3T4B7M2QE	On-Off-On	1/4-40	3 A	Non-Illuminated	Standard Round	11.68 mm		PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	0.25 in
E-Switch 200MSP3T4B5M6RE	On-Off-On	1/4-40	0.4 VA	Non-Illuminated	Standard Round	10.41 mm	Panel Mount Right Angle	PC Pin	20 V	Epoxy Sealed Terminals	30000 Cycles	20 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	0.25 in
E-Switch 200MSP3T2B3M6QEH	On-Off-On	10-48	3 A	Non-Illuminated	Standard Round	5.33 mm	Panel Mount Right Angle	PC Pin	120 V	Epoxy Sealed Terminals	30000 Cycles	28 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT	4.95 mm
E-Switch 200MSP3T1B6M7RE	On-Off-On	Unthreaded	0.4 VA	Non-Illuminated	Standard Round	9.4 mm	Right Angle Through Hole Vertical	PC Pin	20 V	Epoxy Sealed Terminals	30000 Cycles	20 V	Brass Chrome Plated	-30 ░C	85 °C	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.78
		10	$ 3.39
		45	$ 3.06
		90	$ 2.92
		270	$ 2.79
		540	$ 2.55
		1035	$ 2.43
LCSC	Piece	1	$ 4.55
		180	$ 1.82
		495	$ 1.76

Description

General part information

200MSP3 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available
