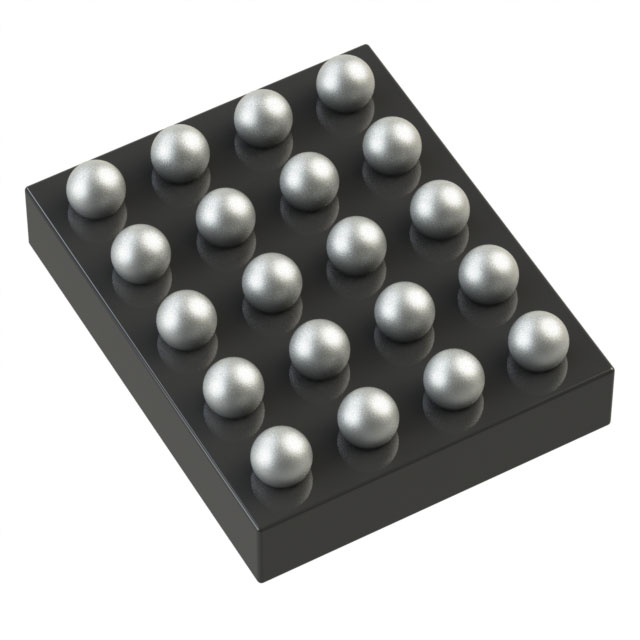

KTB8370AEIB-5C-TR
ActiveKinetic Technologies
IC REG BUCK 5V 5A 20WLCSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTB8370AEIB-5C-TR
ActiveKinetic Technologies
IC REG BUCK 5V 5A 20WLCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTB8370AEIB-5C-TR |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 20-WFBGA, WLCSP |
| Supplier Device Package | 20-WLCSP |
| Supplier Device Package [x] | 1.75 |
| Supplier Device Package [y] | 2.06 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 17 V |
| Voltage - Input (Min) [Min] | 4.7 V |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.77 | |
| 10 | $ 2.49 | |||
| 25 | $ 2.35 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.36 | |||
| Digi-Reel® | 1 | $ 2.77 | ||
| 10 | $ 2.49 | |||
| 25 | $ 2.35 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.36 | |||
| Tape & Reel (TR) | 3000 | $ 1.27 | ||
| 6000 | $ 1.22 | |||
Description
General part information
KTB8370 Series
Buck Switching Regulator IC Positive Fixed 5V 1 Output 5A 20-WFBGA, WLCSP
