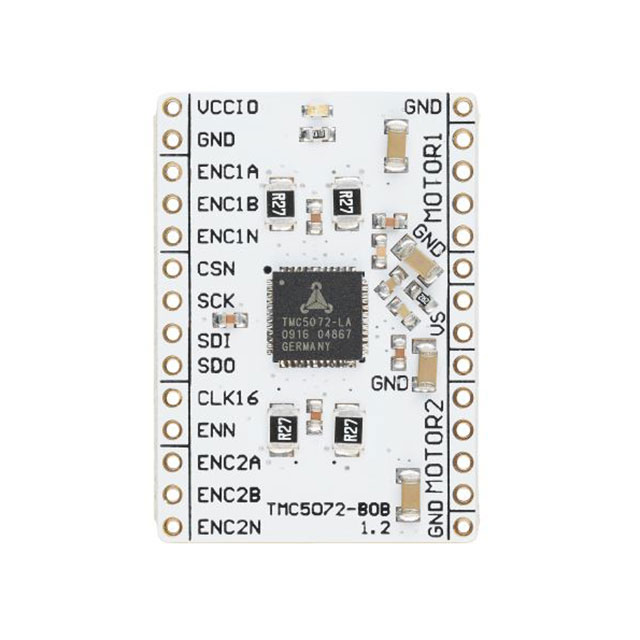

TMC5072-BOB

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC5072

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BREAKOUTBOARD WITH TMC5072

Technical Specifications

Parameters and characteristics for this part

Part	Technology	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Step Resolution [Max]	Step Resolution [Min]	Motor Type - Stepper	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Output Configuration	Function	Supplier Device Package	Interface	Type	Secondary Attributes	Utilized IC / Part	Primary Attributes	Supplied Contents
Analog Devices Inc./Maxim Integrated TMC5072-LA	Power MOSFET	Surface Mount	-40 °C	125 ¯C	1.5 A	5.5 V	26 V	1	0.00390625	Bipolar	48-VFQFN Exposed Pad	5.25 V	3 V	General Purpose	Half Bridge (8)	Driver - Fully Integrated Control and Power Stage	48-QFN (7x7)	SPI UART
Analog Devices Inc./Maxim Integrated TMC5072-BOB																			Power Management	SPI Interface(s)	TMC5072	Motors (Stepper)	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.50

General part information

TMC5072 Motor Controller/Driver, Stepper Power Management Evaluation Board

Technical documentation and resources

No documents available
