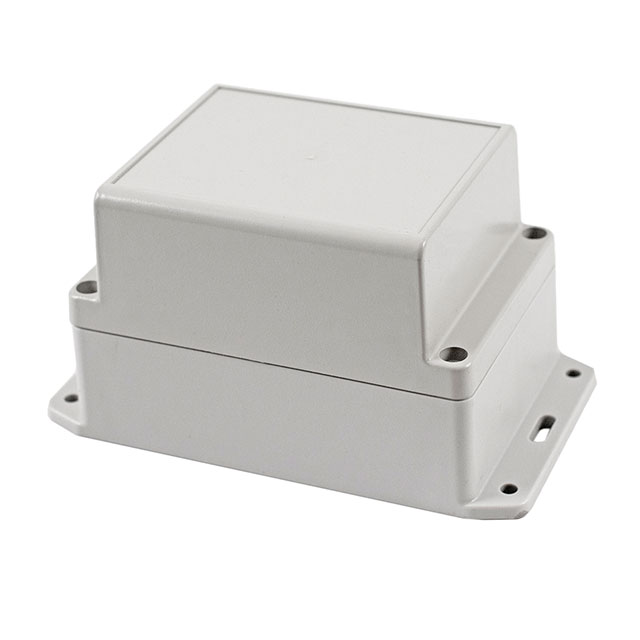

RP1150BF

Active

Hammond Manufacturing

BOX PC WHT 6.14"L X 3.45"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PC WHT 6.14"L X 3.45"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1150BF

Area (L x W)	21.3 in˛
Area (L x W)	137 cm˛
Color	Off, White
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	Polycarbonate
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	155.96 mm
Size / Dimension [x]	6.14 in
Size / Dimension [y]	3.45 "
Size / Dimension [y]	87.63 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness	Design	Material Flammability Rating	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Color
Hammond Manufacturing RP1150BF	3.35 in	85.09 mm	21.3 in˛	137 cm˛	2.03 mm	0.08 "	Cover Included	UL94 V-2	Box	3.45 "	155.96 mm	6.14 in	87.63 mm	Polycarbonate	Off White
Hammond Manufacturing RP1150C	3.35 in	85.09 mm	16.7 in²	108 cm²	2.03 mm	0.08 "	Cover Included	UL94 V-2	Box	3.39 in	125.48 mm	4.94 in	86.11 mm	Polycarbonate	Clear Cover/Door Off White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.87

General part information

Box Polycarbonate White, Off Cover Included 6.140" L x 3.450" W (155.96mm x 87.63mm) X 3.350" (85.09mm)

Technical documentation and resources

No documents available
