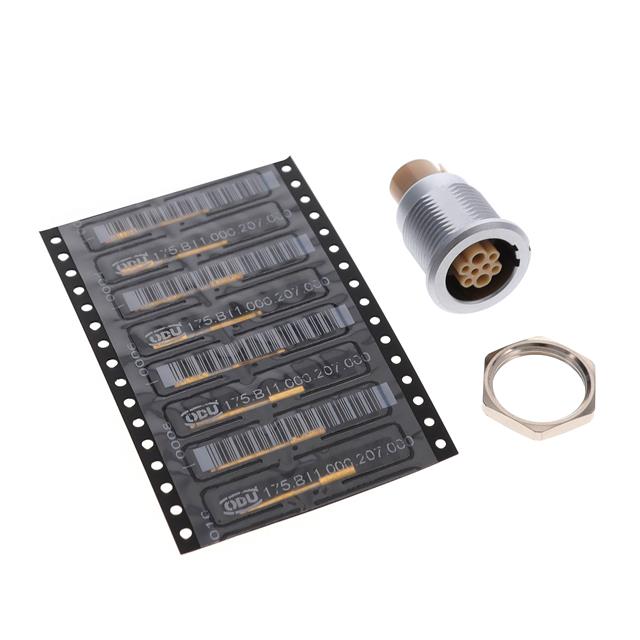

G12LAC-P08NMM2-000L

Active

ODU

PANEL RECEPTACLE, STY G1, SER L,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IEC 60601-1 MINI-SNAP Features

G12LAC-P08NMM2-000L

Active

ODU

PANEL RECEPTACLE, STY G1, SER L,

Deep-Dive with AI

DocumentsDatasheet IEC 60601-1 MINI-SNAP Features

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G12LAC-P08NMM2-000L

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

G12LAC-P Series

Part	Shell Size - Insert	Shell Material	Orientation	Contact Finish - Mating	Shielding	Number of Positions	Connector Type	Applications	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Shell Finish	Features	Primary Material	Voltage Rating	Insert Material	Ingress Protection	Color	Contact Material	Termination
ODU G12LAC-P06LPH0-0000	2	Brass	A	Gold	Unshielded	6	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	12 A	Chrome over Nickel	Ground	Metal	500 V	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P10LJG0-0000	2	Brass	A	Gold	Unshielded	10	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	7.5 A	Chrome over Nickel	Ground	Metal	500 V	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P02LTQ0-0000	2	Brass	A	Gold	Unshielded	2	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	18 A	Chrome over Nickel	Ground	Metal	700 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P19LFG0-0000	2	Brass	A	Gold	Unshielded	19	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	7.5 A	Chrome over Nickel	Ground	Metal	300 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P07NPL0-0000	2	Brass	A	Gold	Unshielded	7	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	15 A	Chrome over Nickel	Ground	Metal	366 V	Polyetheretherketone (PEEK)	IP50	Silver	Brass	Crimp
ODU G12LAC-P10LJH0-0000	2	Brass	A	Gold	Unshielded	10	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	10 A	Chrome over Nickel	Ground	Metal	300 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P08NMM2-000L	2	Brass	A	Gold	Shielded	8	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	10 A	Chrome over Nickel	Medical (IEC 60601 (2 MOOP/2 MOPP))	Metal	48 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass	Crimp
ODU G12LAC-P02LTS0-0000	2	Brass	A	Gold	Unshielded	2	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	24 A	Chrome over Nickel	Ground	Metal	600 V	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P26LCC0-0000	2	Brass	A	Gold	Unshielded	26	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	4 A	Chrome over Nickel	Ground	Metal	300 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass
ODU G12LAC-P18LFD0-0000	2	Brass	A	Gold	Unshielded	18	Receptacle Female Sockets	Industrial Medical Military Testing Equipment & Measurement	Bulkhead - Rear Side Nut	-40 °C	120 °C	Push-Pull	6 A	Chrome over Nickel	Ground	Metal	300 VDC	Polyetheretherketone (PEEK)	IP50	Silver	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 85.03
		10	$ 78.02
		100	$ 68.52

Description

General part information

G12LAC-P Series

8 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

IEC 60601-1 MINI-SNAP Features

Datasheet
