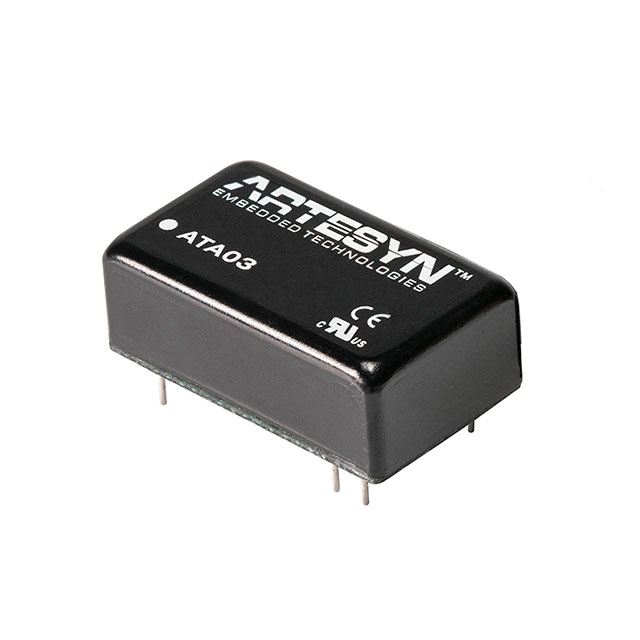

ATA03C36-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 10W
Deep-Dive with AI
Search across all available documentation for this part.
ATA03C36-L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 15V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATA03C36-L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 666 mA |
| Efficiency | 88 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-DIP Module |
| Package / Case | 6 Leads |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 23.8 mm |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [z] | 0.31 in |
| Size / Dimension [z] | 8 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 36.51 | |
Description
General part information
ATA03C Series
Isolated Module DC DC Converter 1 Output 15V 666mA 18V - 75V Input
