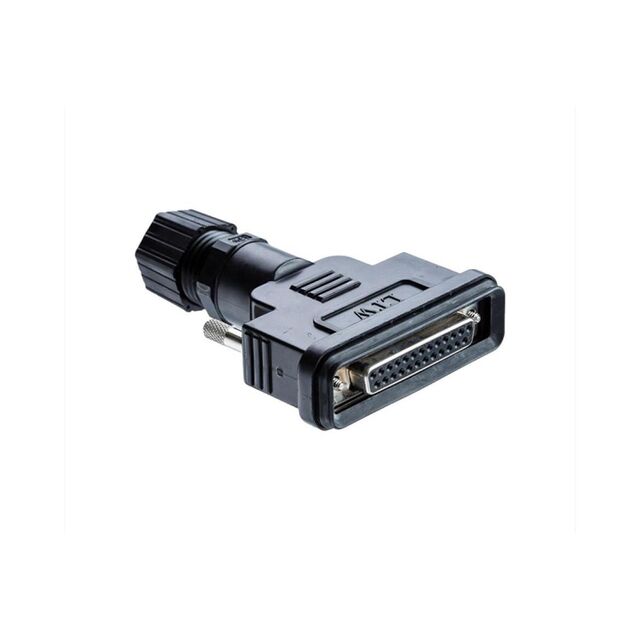

SDB-25BFFC-SL7001

Active

Amphenol LTW

D-SUB, STANDARD, METAL, 5A, 25 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, CRIMP, FIELD INSTALLABLE, 6.0 - 1

Search across all available documentation for this part.

Active

Amphenol LTW

D-SUB, STANDARD, METAL, 5A, 25 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, CRIMP, FIELD INSTALLABLE, 6.0 - 1

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-25BFFC-SL7001

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Note	Features	Dielectric Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Color	Mounting Type	Contact Type	Connector Style
Amphenol LTW SDB-25BFFC-SL7001	Contacts Not Included	Shielded	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Receptacle for Female Contacts	2	B DB	3	Housing/Shell (Unthreaded)	Black	Free Hanging (In-Line)	Signal	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Sub Connector 25 Position
