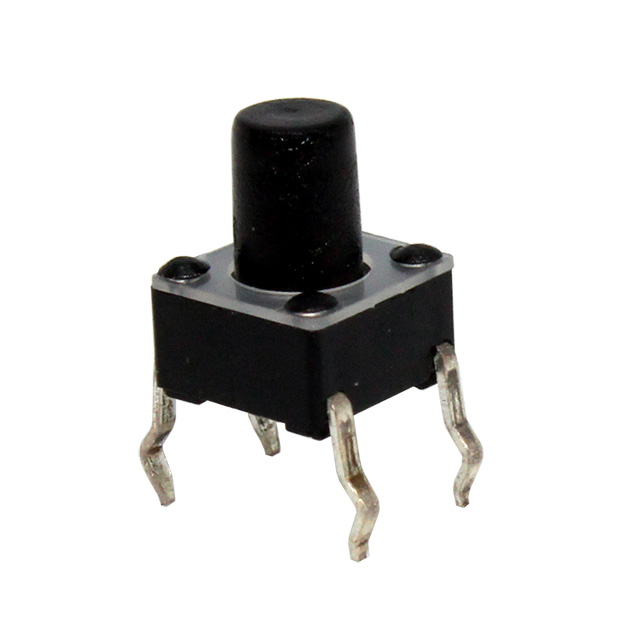

CT11028.0F100

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT11028.0F100

Actuator Height off PCB, Vertical [z]	8 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Circuit	Mounting Type	Actuator Orientation	Actuator Material	Switch Travel	Actuator Height off PCB, Vertical [z]	Termination Style	Contact Rating @ Voltage	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Switch Function	Outline [y]	Outline [x]	Operating Force
CIT Relay and Switch CT11028.0F260	SPST-NO	Through Hole	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	8 mm	PC Pin	0.05 A 50 VDC	Plunger for Cap	85 °C	-40 °C	Non-Illuminated	Off-Mom	6 mm	6 mm	260 gf
CIT Relay and Switch CT11028.0F100	SPST-NO	Through Hole	Top Actuated	Nylon 6/6 Polyamide (PA66)	0.25 mm	8 mm	PC Pin	0.05 A 50 VDC	Plunger for Cap	85 °C	-40 °C	Non-Illuminated	Off-Mom	6 mm	6 mm	100 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
