A12SR12SR30K51A

Active

JST Sales America Inc.

JUMPER 12SR-3S - 12SR-3S 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 12SR-3S - 12SR-3S 2"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Number of Rows	Length [x]	Length [x]	Length [x]	Length	Length	Length	Length
JST Sales America Inc. A12SR12SR30K102B	Socket to Socket	12	IDC	Tin	0.039 "	1 mm	1	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A12SR12SR30K254A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1				10 in	0.833 ft	254 mm
JST Sales America Inc. A12SR12SR30K203A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1				8 in	0.667 ft	203.2 mm
JST Sales America Inc. A12SR12SR30K152B	Socket to Socket	12	IDC	Tin	0.039 "	1 mm	1				6 "		152.4 mm	0.5 '
JST Sales America Inc. A12SR12SR30K305A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1					1 ft	304.8 mm
JST Sales America Inc. A12SR12SR30K51A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1				2 "	0.167 '	50.8 mm
JST Sales America Inc. A12SR12SR30K102A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A12SR12SR30K51B	Socket to Socket	12	IDC	Tin	0.039 "	1 mm	1				2 "	0.167 '	50.8 mm
JST Sales America Inc. A12SR12SR30K152A	Socket to Socket Reversed	12	IDC	Tin	0.039 "	1 mm	1				6 "		152.4 mm	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

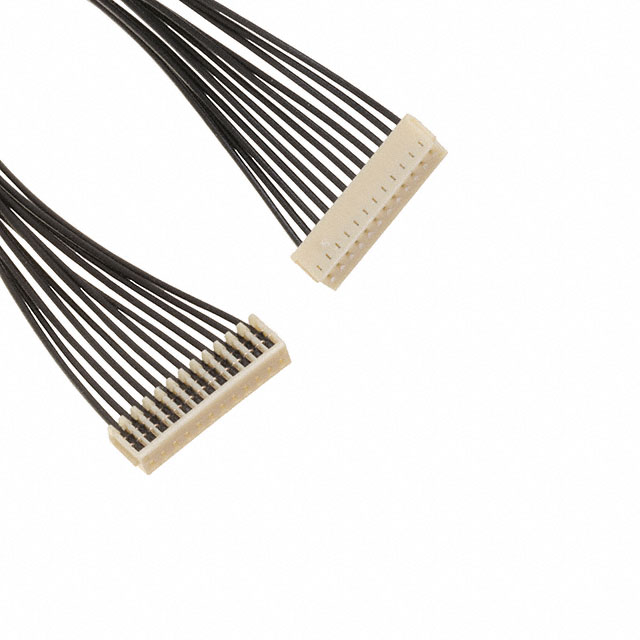

12 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.167' (50.80mm, 2.00")

Technical documentation and resources
