74AHC240BQ-Q100X

Obsolete

Freescale Semiconductor - NXP

IC BUFFER INVERT 5.5V 20QFN

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC BUFFER INVERT 5.5V 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC240BQ-Q100X

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Grade	Automotive
Logic Type	Inverting, Buffer
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State

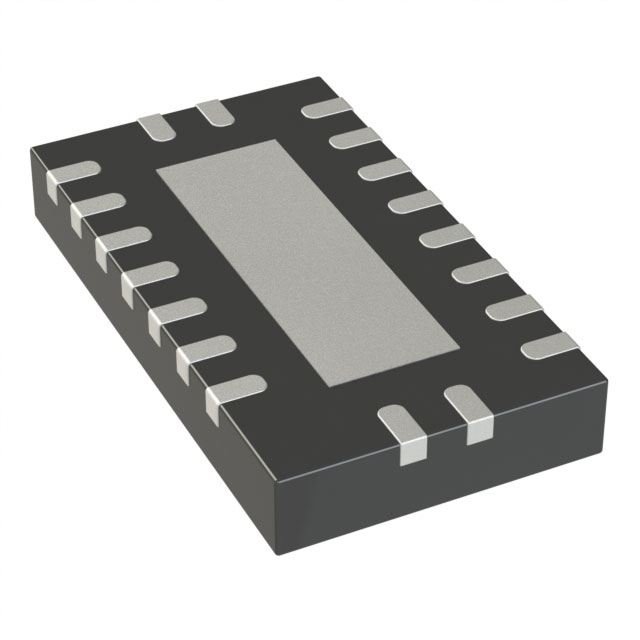

Package / Case	20-VFQFN Exposed Pad
Qualification	AEC-Q100
Supplier Device Package	20-DHVQFN (4.5x2.5)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Part	Number of Bits per Element	Output Type	Logic Type	Number of Elements	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [y]	Package / Case [y]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Qualification	Grade	Package / Case [x]
Freescale Semiconductor - NXP 74AHC240D,112	4	3-State	Buffer Inverting	2	-40 °C	125 °C	20-SO	Surface Mount	5.5 V	2 V	20-SOIC	0.295 in	7.5 mm	8 mA	8 mA
Freescale Semiconductor - NXP 74AHC240PW-Q100J	4	3-State	Buffer Inverting	2	-40 °C	125 °C	20-TSSOP	Surface Mount	5.5 V	2 V	20-TSSOP	4.4 mm		8 mA	8 mA	AEC-Q100	Automotive	0.173 in
Freescale Semiconductor - NXP 74AHC240BQ,115	4	3-State	Buffer Inverting	2	-40 °C	125 °C	20-DHVQFN (4.5x2.5)	Surface Mount	5.5 V	2 V	20-VFQFN Exposed Pad			8 mA	8 mA
Freescale Semiconductor - NXP 74AHC240BQ-Q100X	4	3-State	Buffer Inverting	2	-40 °C	125 °C	20-DHVQFN (4.5x2.5)	Surface Mount	5.5 V	2 V	20-VFQFN Exposed Pad			8 mA	8 mA	AEC-Q100	Automotive
Freescale Semiconductor - NXP 74AHC240D,118	4	3-State	Buffer Inverting	2	-40 °C	125 °C	20-SO	Surface Mount	5.5 V	2 V	20-SOIC	0.295 in	7.5 mm	8 mA	8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buffer, Inverting 2 Element 4 Bit per Element 3-State Output 20-DHVQFN (4.5x2.5)
