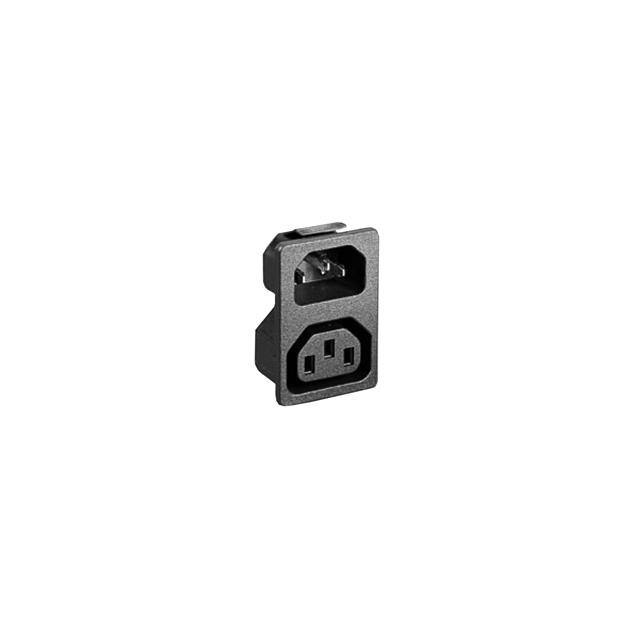

PX0716/48

Obsolete

BULGIN LIMITED

HIGH POWER CONNECTOR, IEC 320-2-2/F & C14, PLUG, RECEPTACLE, 250 VAC, 10 A, PANEL MOUNT

Search across all available documentation for this part.

Obsolete

BULGIN LIMITED

HIGH POWER CONNECTOR, IEC 320-2-2/F & C14, PLUG, RECEPTACLE, 250 VAC, 10 A, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PX0716/48

Accomodates a Fuse	False
Approval Agency	cULus
Connector Style	IEC 320-2-2/F, IEC 320-C14
Connector Type	Receptacle, Female Sockets, Receptacle, Male Blades
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Positions	3
Panel Cutout Dimensions [x]	33.8 mm
Panel Cutout Dimensions [y]	50.7 mm
Panel Thickness	1.2 mm
Panel Thickness	0.047 "
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Mounting Type	Accomodates a Fuse	Termination	Termination	Current Rating - Appliance Inlet	Approval Agency	Filter Type	Voltage Rating - Appliance Inlet	Connector Type	Connector Style	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Number of Positions	Number of Positions
BULGIN LIMITED PX0716/48	Panel Mount Snap-In		0.189 " 4.8 mm	Quick Connect	10 A	cULus	Unfiltered - Commercial	250 VAC	Receptacle Female Sockets Receptacle Male Blades	IEC 320-2-2/F IEC 320-C14	1.2 mm	0.047 "	33.8 mm	50.7 mm	UL94 V-0	2	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Snap-In
