WR-160SB-VF-N1

Active

JAE Electronics

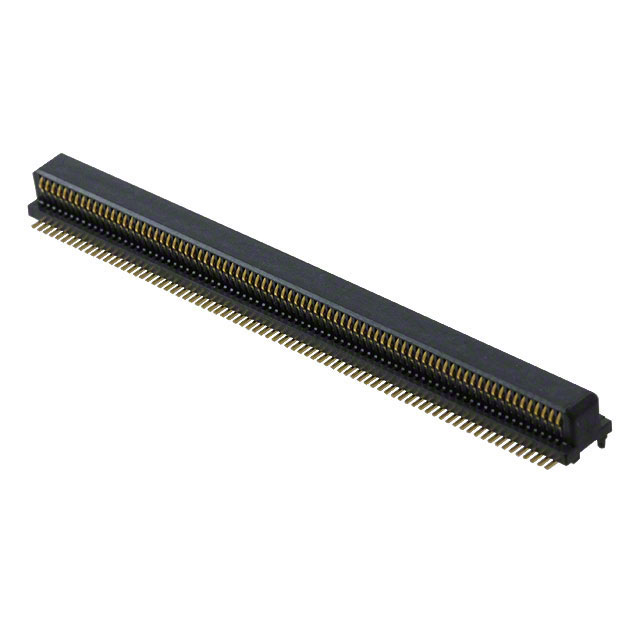

CONN RCPT 160POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 160POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WR-160SB-VF-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Connector Type	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions
JAE Electronics WR-160SB-VF-N1	Board Guide	Center Strip Contacts Receptacle	4 mm 5 mm 6 mm	2	3.25 mm	0.128 in	Gold	Surface Mount	4 Áin	0.1 Ám	0.5 mm	0.02 in	160
JAE Electronics WR-160SB-VFH05-N1-R1500	Board Guide	Center Strip Contacts Receptacle	4.5 mm 5.5 mm 6.5 mm	2	3.75 mm	0.148 in	Gold	Surface Mount	4 Áin	0.1 Ám	0.5 mm	0.02 in	160

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
