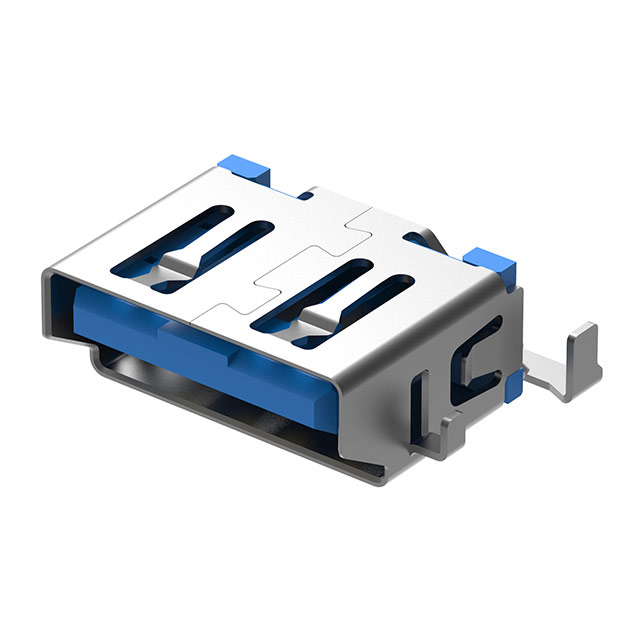

USB1115-30-B-A

Active

GCT

USB3.0 A SKT, BOTTOM MNT, TH, R/A, 30Μ", CUTAWAY, BLACK, T&R ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

USB3.0 A SKT, BOTTOM MNT, TH, R/A, 30Μ", CUTAWAY, BLACK, T&R ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	USB1115-30-B-A

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal, Bottom Mount, Mid Mount
Mounting Type	Through Hole, Right Angle, Board Edge, Cutout
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel (SUS201)
Shielding	Shielded
Termination	Solder

Part	Connector Type	Material Flammability Rating	Contact Finish	Mounting Type	Mating Cycles	Gender	Shielding	Insulation Color	Number of Ports	Mounting Feature	Current Rating (Amps)	Number of Contacts	Shell/Shielding Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]
GCT USB1115-30-B-A	USB-A (USB TYPE-A)	UL94 V-0	Gold	Board Edge Cutout Through Hole Right Angle	5000	Receptacle	Shielded	Black	1	Bottom Mount Horizontal Mid Mount	0.25 A 1.8 A	9	Steel (SUS201)	Solder	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	22400	$ 0.60
Newark	Each	1000	$ 0.89

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Board Edge, Cutout; Through Hole, Right Angle
