VF20100SG-E3/4W

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 20A ITO220AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 20A ITO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	VF20100SG-E3/4W

Current - Reverse Leakage @ Vr	350 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C

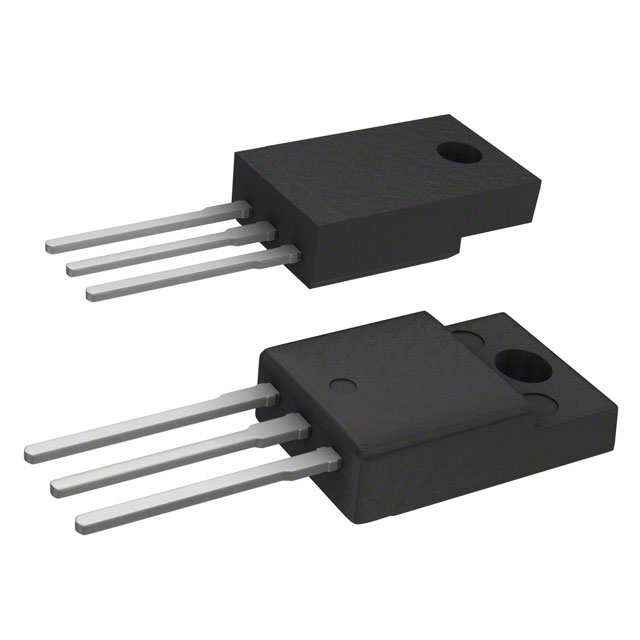

Package / Case	TO-220-3 Full Pack, Isolated Tab
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.07 V

Part	Package / Case	Speed	Technology	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode)	Diode Configuration
Vishay General Semiconductor - Diodes Division VF20100S-M3/4W	TO-220-3 Full Pack Isolated Tab	200 mA 500 ns	Schottky	Through Hole	ITO-220AB	150 °C	-40 °C	100 V	500 µA	900 mV
Vishay General Semiconductor - Diodes Division VF20100SG-E3/45	TO-220-3 Full Pack Isolated Tab	200 mA 500 ns	Schottky	Through Hole	ITO-220AB	150 °C	-40 °C	100 V	350 µA	1.07 V
Vishay General Semiconductor - Diodes Division VF20100C-E3/4W	TO-220-3 Full Pack Isolated Tab	200 mA 500 ns	Schottky	Through Hole	ITO-220AB	150 °C	-40 °C	100 V	800 µA	790 mV	10 A	1 Pair Common Cathode
Vishay General Semiconductor - Diodes Division VF20100SG-E3/4W	TO-220-3 Full Pack Isolated Tab	200 mA 500 ns	Schottky	Through Hole	ITO-220AB	150 °C	-40 °C	100 V	350 µA	1.07 V
Vishay General Semiconductor - Diodes Division VF20100S-E3/4W	TO-220-3 Full Pack Isolated Tab	200 mA 500 ns	Schottky	Through Hole	ITO-220AB	150 °C	-40 °C	100 V	500 µA	900 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.51

General part information

Diode 100 V 20A Through Hole ITO-220AB
