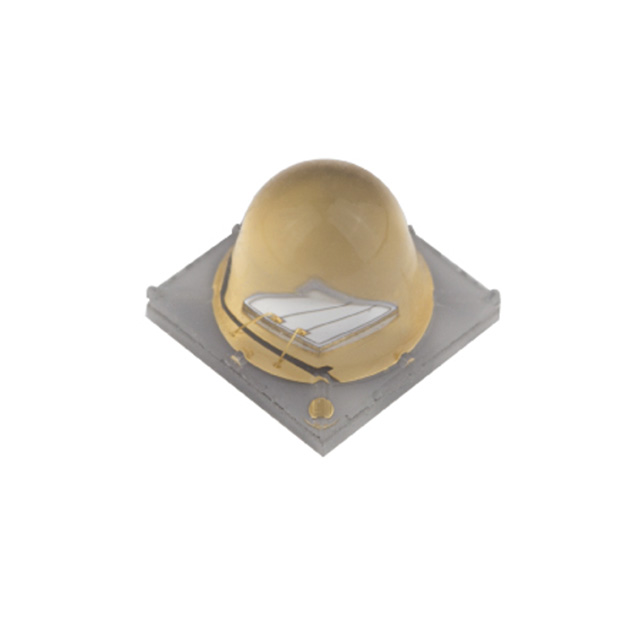

CUN66B1B
ActiveSETi/Seoul Viosys
367NM NZ5 PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUN66B1B
ActiveSETi/Seoul Viosys
367NM NZ5 PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUN66B1B |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 500 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
| Wavelength | 367 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.97 | |
| 10 | $ 4.18 | |||
| 100 | $ 3.26 | |||
| Digi-Reel® | 1 | $ 5.97 | ||
| 10 | $ 4.18 | |||
| 100 | $ 3.26 | |||
| Tape & Reel (TR) | 500 | $ 2.90 | ||
| 1000 | $ 2.79 | |||
| 1500 | $ 2.73 | |||
| 2500 | $ 2.67 | |||
| 3500 | $ 2.66 | |||
Description
General part information
CUN66B1 Series
Ultraviolet (UV) Emitter 367nm 3.6V 500mA 45° 1414 (3535 Metric)
