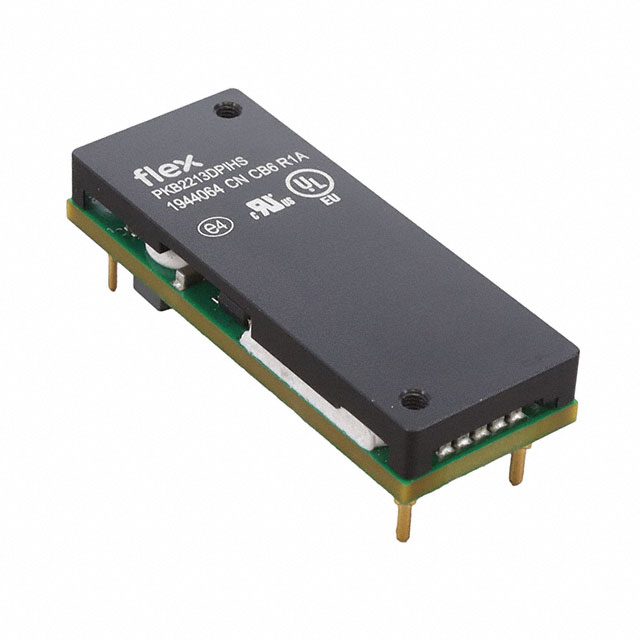

PKB2213DPIHS
ActiveFlex Power Modules
DC DC CONVERTER 12V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKB2213DPIHS
ActiveFlex Power Modules
DC DC CONVERTER 12V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKB2213DPIHS |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 95.5 % |
| Features | Remote On/Off, Baseplate |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Eighth Brick |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 22.7 mm |
| Size / Dimension [y] | 0.89 in |
| Size / Dimension [z] | 0.52 " |
| Size / Dimension [z] | 13.2 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Eighth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 62.21 | |
| 5 | $ 58.64 | |||
| 10 | $ 57.17 | |||
| 25 | $ 55.29 | |||
| 50 | $ 53.90 | |||
| 100 | $ 52.55 | |||
Description
General part information
PKB221 Series
Isolated Module DC DC Converter 1 Output 12V 20A 18V - 36V Input
