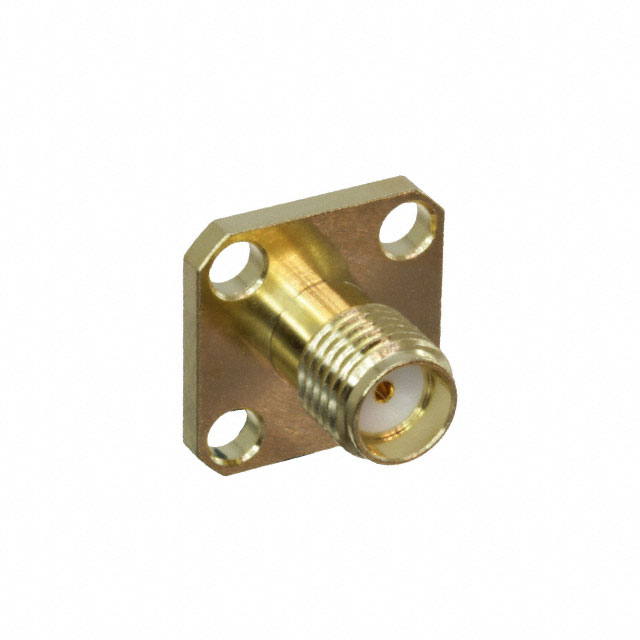

RF2-155-T-00-50-G - RF2-155-T-00-50-G

RF2-155-T-00-50-G

Active
Adam Tech

CONN SMA JACK PCB 50 OHM SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications
RF2-155-T-00-50-G - RF2-155-T-00-50-G

RF2-155-T-00-50-G

Active
Adam Tech

CONN SMA JACK PCB 50 OHM SLDR

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationRF2-155-T-00-50-G
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMA
Connector TypeReceptacle, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]18 GHz
Housing ColorWhite
Impedance50 Ohms
Mounting FeatureFlange
Mounting TypeThrough Hole, Panel Mount
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating335 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 4.01
10$ 3.07
25$ 2.76
50$ 2.56
100$ 2.37
250$ 2.15
500$ 2.01
1000$ 1.93

Description

General part information

RF2-155 Series

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
