D01-9922046
ActiveHarwin Inc.

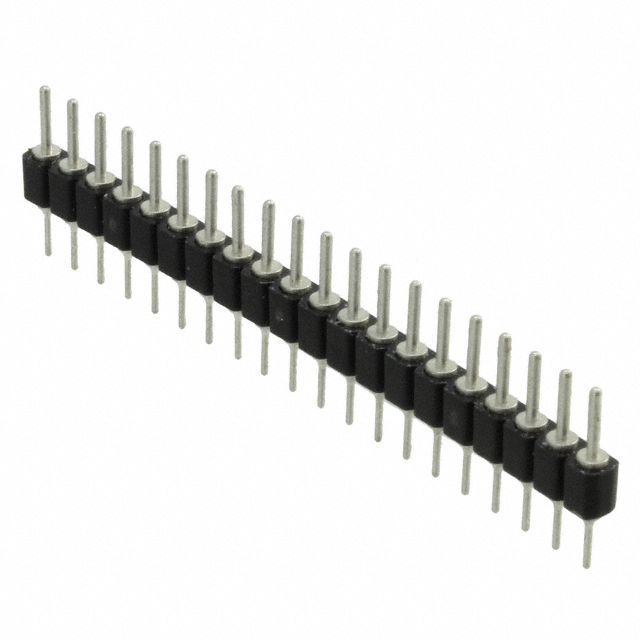

CONN SIL HDR MALE PIN 20POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
D01-9922046
ActiveHarwin Inc.
CONN SIL HDR MALE PIN 20POS TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D01-9922046 |
|---|---|
| Color | Black |
| Connector Type | Header, SIL, SIP |
| Contact Finish | Tin |
| Contact Finish Thickness | 137.8 µin |
| Contact Finish Thickness | 3.5 µm |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.90 | |
| 10 | $ 4.45 | |||
| 100 | $ 3.92 | |||
| 500 | $ 3.33 | |||
| 1000 | $ 2.84 | |||
Description
General part information
D01-99 Series
20 Position SIP, SIL - Header Connector Post Tin
