307-041-447-101

Active

EDAC Inc.

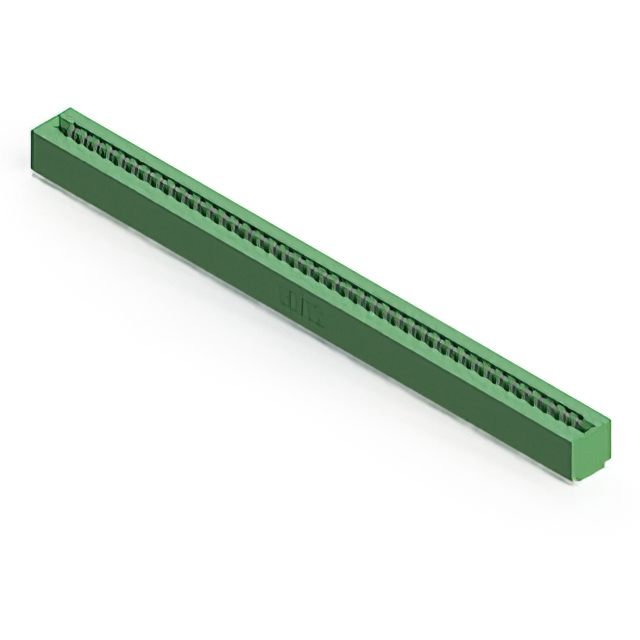

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-041-447-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-041-447-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	41
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

307-041 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Termination Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Read Out	Color	Number of Rows	Termination	Gender	Contact Type	Card Type	Flange Feature	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-041-421-108	-40 °C	105 ░C	82	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Dual	Green	2	Solder	Female	Semi Bellows	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 307-041-447-101	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Single	Green	1	Wire Wrap	Female	Semi Bellows	Non Specified - Single Edge
EDAC Inc. 307-041-425-158	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Single	Green	1	Solder	Female	Semi Bellows	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 307-041-427-108	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Single	Green	1	Solder	Female	Semi Bellows	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 307-041-554-107	-40 °C	105 ░C	82	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Surface Mount	Gold	Dual	Green	2	Solder Eyelet(s)	Female	Semi Bellows	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám
EDAC Inc. 307-041-431-107	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Single	Green	1	Solder	Female	Semi Bellows	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 307-041-453-102	-40 °C	105 ░C	82	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole Right Angle	Tin	Dual	Green	2	Solder	Female	Semi Bellows	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded				3.25 mm	0.128 "
EDAC Inc. 307-041-405-104	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Tin	Single	Green	1	Solder Eyelet(s)	Female	Semi Bellows	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded				3.96 mm	0.156 in
EDAC Inc. 307-041-505-112	-40 °C	105 ░C	41	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Through Hole	Gold	Single	Green	1	Solder Eyelet(s)	Female	Semi Bellows	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded		10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 307-041-454-108	-40 °C	105 ░C	82	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	1	0.156 in	3.96 mm	Surface Mount	Tin	Dual	Green	2	Solder Eyelet(s)	Female	Semi Bellows	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.09
Newark	Each	1	$ 23.32
		100	$ 12.76
		250	$ 11.71
		500	$ 10.25
		1000	$ 8.34

Description

General part information

307-041 Series

41 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
