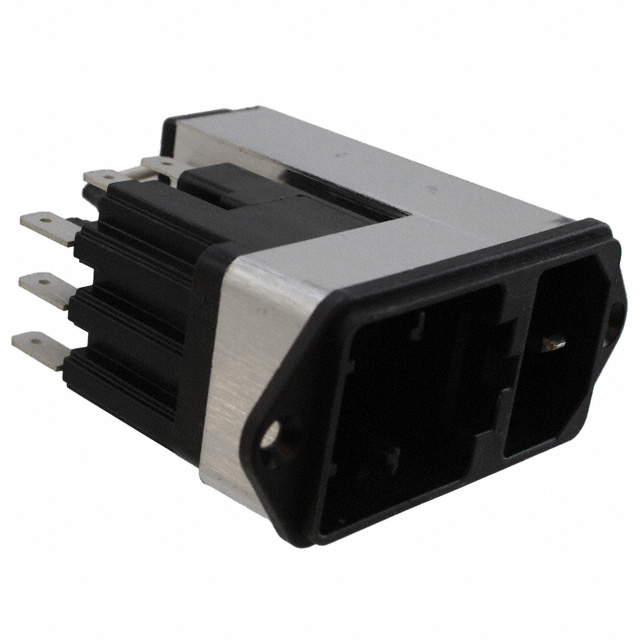

CE30.6100.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	CE30.6100.151

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	4 A
Current Rating - Filter	4 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	53.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Ingress Protection	Termination	Termination	Voltage Rating - Appliance Inlet	Connector Style	Features	Accomodates a Fuse	Current Rating - Appliance Inlet	Mounting Type	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Material Flammability Rating	Fuse Holder, Drawer	Filter Type	Approval Agency
SCHURTER Inc. CE30.6100.151	IP40	0.189 " 4.8 mm	Quick Connect	250 VAC	IEC 320-C14	Voltage Selector		4 A	Flange Panel Mount	Receptacle Male Blades - Module	28.5 mm	53.5 mm	4 A	UL94 V-0	Drawer Sold Separate	Filtered (EMI RFI) - Commercial	cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
