SPC5566MVR144
ActiveNXP 32-BIT MCU, POWER ARCH CORE, 3MB FLASH, 144MHZ, -40/+125DEGC, AUTOMOTIVE GRADE, PBGA 416 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SPC5566MVR144
ActiveNXP 32-BIT MCU, POWER ARCH CORE, 3MB FLASH, 144MHZ, -40/+125DEGC, AUTOMOTIVE GRADE, PBGA 416 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPC5566MVR144 |
|---|---|
| Connectivity | CANbus, EBI/EMI, SCI, SPI, Ethernet |
| Core Size | 32-Bit Single-Core |
| Data Converters | 12 b, 40 x |
| Mounting Type | Surface Mount |
| Number of I/O | 256 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | External |

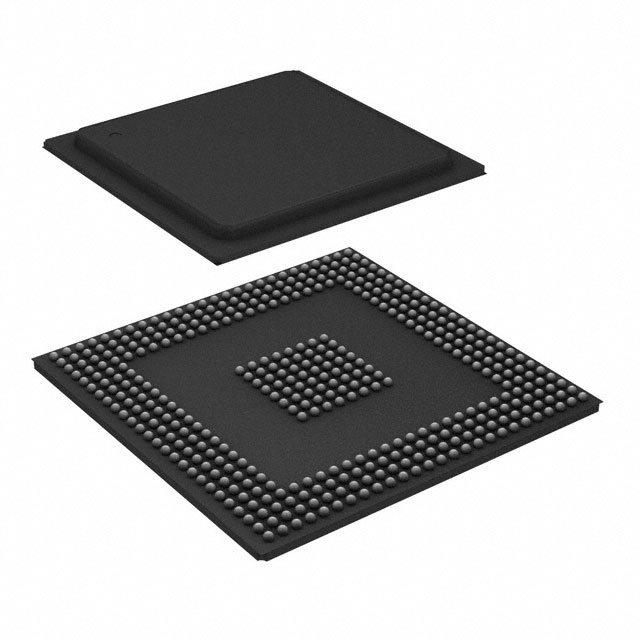

| Package / Case | 416-BBGA |
| Peripherals | WDT, DMA, PWM, POR |
| Program Memory Size | 3 MB |
| Program Memory Type | FLASH |
| RAM Size | 128 K |
| Speed | 144 MHz |
| Supplier Device Package | 416-PBGA (27x27) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SPC5566 Series
High-performance 132 MHz 32-bit Power Architecture technology core with variable length encoding (VLE)
Memory management unit (MMU) with 32-entry fully associative translation lookaside buffer (TLB)
SPE (signal processing extension): DSP, SIMD and floating point capabilities
