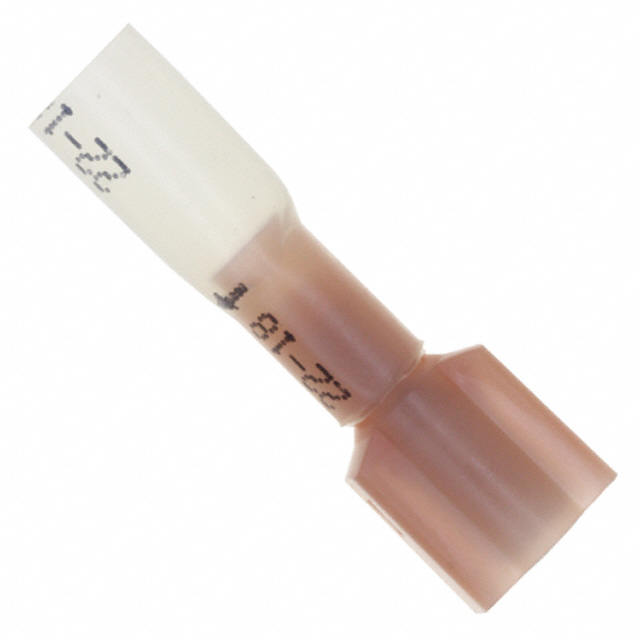

MNHU18-250DMIK

Active

3M (TC)

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Search across all available documentation for this part.

Active

3M (TC)

FULLY NYLON INSULATED BUTTED SEAM MALE H/S DISCONNECT (BULK)

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Contact Material	Terminal Type	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Insulation	Termination	Contact Finish	Color	Length - Overall [x]	Length - Overall [x]
3M (TC) MNHU18-250DMIK	Free Hanging (In-Line)	Butted Seam	22 AWG	17.5 AWG	Male	Copper	Standard	0.032 in	0.81 mm	6.35 mm	0.25 in	Fully Insulated Heat Shrink	Crimp	Tin	Red	30.48 mm	1.2 in
3M (TC) MNHU18-250DMIX-BOTTLE	Free Hanging (In-Line)	Butted Seam	22 AWG	17.5 AWG	Male	Copper	Standard	0.032 in	0.81 mm	6.35 mm	0.25 in	Fully Insulated Heat Shrink	Crimp	Tin	Red	30.48 mm	1.2 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated Heat Shrink
