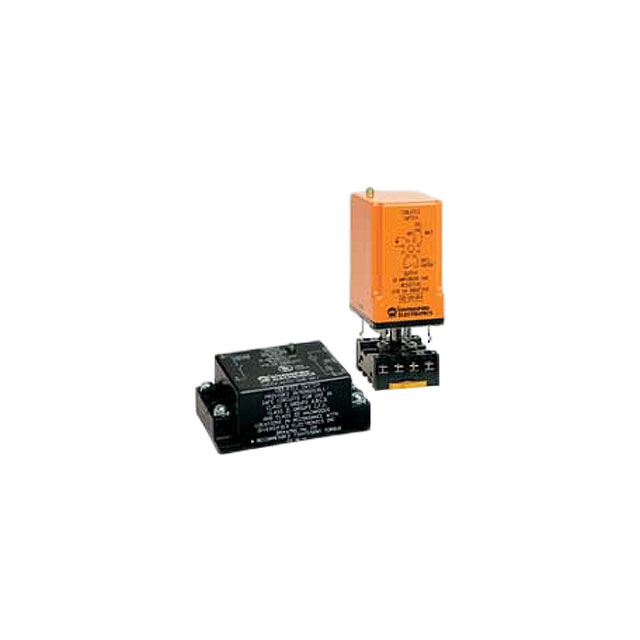

ISO-120-AFN

Unknown

Mueller Electric Co

RELAY GEN PURPOSE SPST 5A 120V

Search across all available documentation for this part.

Unknown

Mueller Electric Co

RELAY GEN PURPOSE SPST 5A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Relay Type	Approval Agency	Termination Style	Coil Type	Release Time	Operate Time	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Switching Voltage	Contact Form	Seal Rating
Mueller Electric Co ISO-120-AFA	120 VAC	General Purpose	UL	Plug In 8 Pin (Octal)	Non Latching	2.5 ms	6 ms	Socketable	55 °C	-20 C	5 A	120 VAC	SPST-NO (1 Form A)
Mueller Electric Co ISO-120-AFN	120 VAC	General Purpose	UL	Screw Terminal	Non Latching	2.5 ms	6 ms	Chassis Mount	55 °C	-20 C	5 A	120 VAC	SPST-NO (1 Form A)	Sealed - Fully

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 168.90

General part information

General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount

Technical documentation and resources

No documents available
