Technical Specifications
Parameters and characteristics for this part
| Specification | SZEMI2121MTTAG |
|---|---|
| Current Rating (Max) [Max] | 100 mA |
| DC Resistance (DCR) (Max) [Max] | 8 Ohm |
| Features | TVS Diode ESD Protection |
| Height (Max) | 0.8 mm |
| Height (Max) [Max] | 0.032 " |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

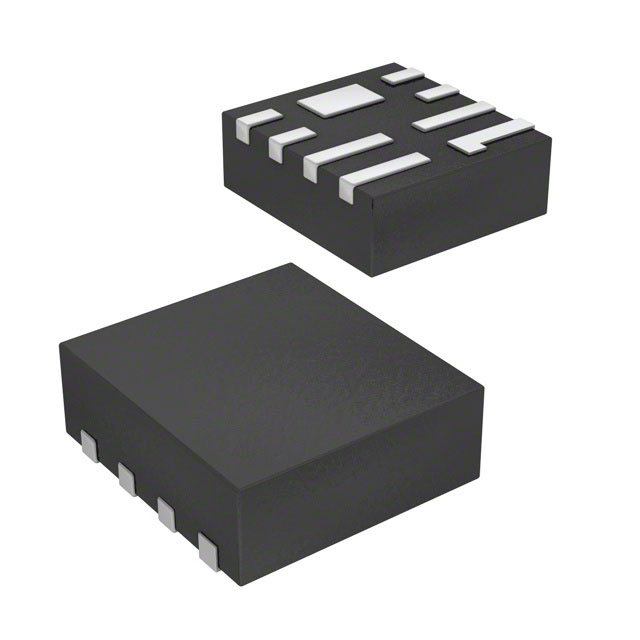

| Package / Case | 8-WFDFN |
| Size / Dimension [x] | 0.087 in |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.01 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.01 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 3000 | $ 0.54 | ||
| 6000 | $ 0.51 | |||
| 9000 | $ 0.50 | |||
| 15000 | $ 0.49 | |||
Description
General part information
SZEMI2121 Series
The EMI2121 is an integrated common mode filter providing both ESD protection and EMI filtering for high speed serial digital interfaces such as USB2.0.The EMI2121 provides EMI filtering for one differential data line pair and ESD protection for one data pair plus a supply input such as USB2.0 Vbus or USB ID pin. It is supplied in a small RoHS compliant WDFN8 package.
