145638009211859+

Obsolete

Kyocera AVX

MEMORY CARD / TAPE/REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Kyocera AVX

MEMORY CARD / TAPE/REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	145638009211859+

Card Type	Secure Digital - SD
Features	Card Guide, Switch, Board Guide
Height Above Board [z]	2.9 mm
Height Above Board [z]	0.114 "
Insertion, Removal Method	Pull Out, Push In
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle

Part	Insertion, Removal Method	Mounting Feature	Features	Height Above Board [z]	Height Above Board [z]	Connector Type	Mounting Type	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Kyocera AVX 145638009511859+	Push In Push Out	Normal Standard - Top	Board Guide Card Guide Switch	2.9 mm	0.114 "	Connector and Ejector	Surface Mount Right Angle	Secure Digital - SD
Kyocera AVX 145638009511862	Push In Push Out	Normal Standard - Top	Board Guide Card Guide Switch	2.9 mm	0.114 "	Connector and Ejector	Surface Mount Right Angle	Secure Digital - SD	Gold	0.51 µm	20 µin
Kyocera AVX 145638009211859+	Pull Out Push In	Normal Standard - Top	Board Guide Card Guide Switch	2.9 mm	0.114 "		Surface Mount Right Angle	Secure Digital - SD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

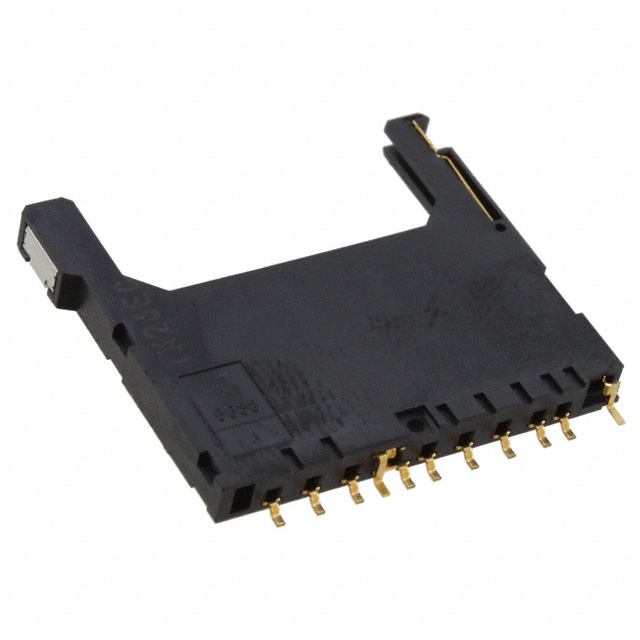

12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle

Technical documentation and resources

No documents available
