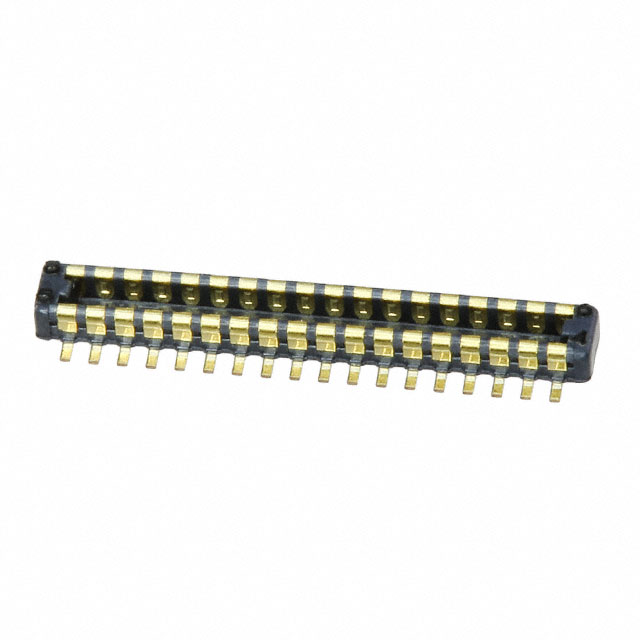

WP9-P032VA1-R500
ObsoleteJAE Electronics
CONN PLUG 32POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
WP9-P032VA1-R500
ObsoleteJAE Electronics
CONN PLUG 32POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WP9-P032VA1-R500 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.66 | |||
| 50 | $ 1.63 | |||
| 100 | $ 1.55 | |||
| 250 | $ 1.41 | |||
| Tape & Reel (TR) | 3000 | $ 1.04 | ||
Description
General part information
WP9-P032 Series
32 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
No documents available
