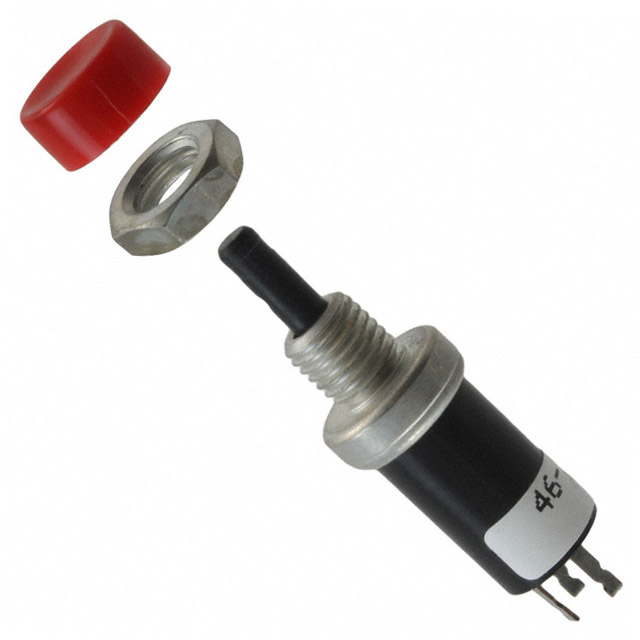

46-111 RED

Active

Grayhill Inc.

SWITCH PUSH SPDT 0.25A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPDT 0.25A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	46-111 RED

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	250 mA
Electrical Life	250000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Part	Termination Style	Mounting Type	Actuator Type	Actuator Marking	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Electrical Life	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Type	Voltage Rating - AC
Grayhill Inc. 46-111 BLK	Solder Lug	Panel Mount Rear	Button Round	No Marking	SPDT	250 mA	6.75 mm	250000 Cycles	On-Mom	85 °C	-40 °C	Black	Standard	115 V
Grayhill Inc. 46-111 RED	Solder Lug	Panel Mount Rear	Button Round	No Marking	SPDT	250 mA	6.75 mm	250000 Cycles	On-Mom	85 °C	-40 °C	Red	Standard	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.13

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources

No documents available
