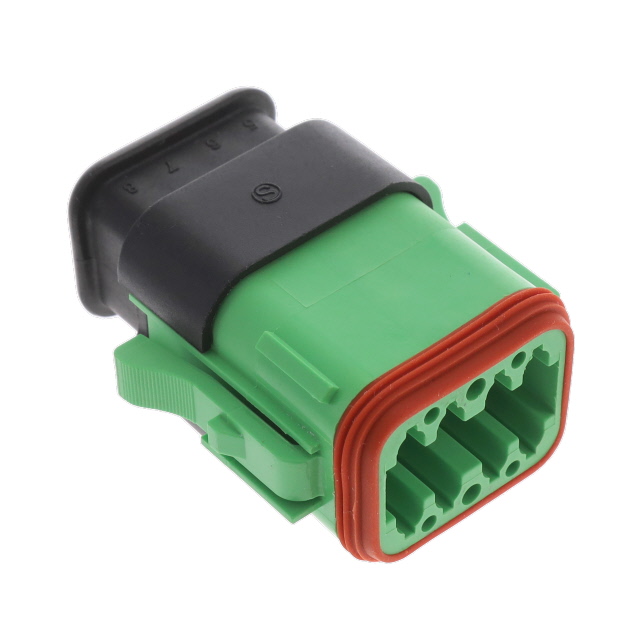

AT06-08SC-SR2GN

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-08SC-SR2GN

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Contact Termination	Note	Number of Positions	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Fastening Type	Number of Rows	Insulation Material	Connector Type	Accessory Type	For Use With/Related Products
Amphenol Sine Systems Corp AT06-08SC-SRGN	Crimp	Contacts Not Included	8	Female Socket	Green	-55 °C	125 °C	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Latch Lock	2	Thermoplastic	Plug
Amphenol Sine Systems Corp AT06-08SC-MM01	Crimp	Contacts Not Included	8	Female Socket	Green	-55 °C	125 °C		Free Hanging (In-Line)	Latch Lock	2	Thermoplastic	Plug
Amphenol Sine Systems Corp AT06-08S-CAP			8					IP67						Cap (Cover) Protective	AT Series™
Amphenol Sine Systems Corp AT06-08SC-EC01	Crimp	Contacts Not Included	8	Female Socket	Green	-55 °C	125 °C	Cap (Cover)	Free Hanging (In-Line)	Latch Lock	2	Thermoplastic	Plug
Amphenol Sine Systems Corp AT06-08SC-SR2GN	Crimp	Contacts Not Included	8	Female Socket	Green	-55 °C	125 °C	Cap (Cover) Sealed Strain Relief	Free Hanging (In-Line)	Latch Lock	2	Thermoplastic	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Green
