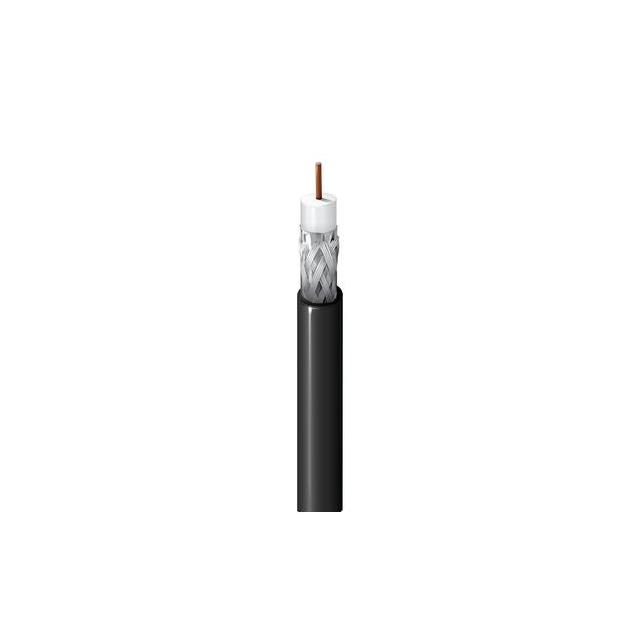

179DTNH 0071000

Active

Belden Inc.

#28H PE/GIFPE SH PPO

Search across all available documentation for this part.

Active

Belden Inc.

#28H PE/GIFPE SH PPO

Technical Specifications

Parameters and characteristics for this part

Specification	179DTNH 0071000

Cable Group	RG-179
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.3 mm
Dielectric Diameter [diameter]	0.012 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.106 in
Jacket (Insulation) Diameter [diameter]	2.69 mm
Jacket (Insulation) Material	Low Smoke Polyphenylene Oxide (LSPPO)
Jacket Color	Violet
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	95 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Network, Datacom
VoP, Velocity of Propagation	79
Wire Gauge	28 AWG

Part	Conductor Strand	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Material	Conductor Material	Jacket (Insulation) Material	Jacket Color	VoP, Velocity of Propagation	Cable Type	Shield Type	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Material	Wire Gauge	Impedance
Belden Inc. 179DTNH 0041000	Solid	304.8 m	1000 ft	0.3 mm	0.012 in	RG-179	0.106 in	2.69 mm	Foam Polyethylene (FPE)	Copper Bare	Low Smoke Polyphenylene Oxide (LSPPO)	Yellow	79	Coaxial	Braid Foil	Datacom Network	-30 ░C	75 ░C	95 % 100 %	Aluminum Copper Tinned	28 AWG	75 Ohms
Belden Inc. 179DTNH 0071000	Solid	304.8 m	1000 ft	0.3 mm	0.012 in	RG-179	0.106 in	2.69 mm	Foam Polyethylene (FPE)	Copper Bare	Low Smoke Polyphenylene Oxide (LSPPO)	Violet	79	Coaxial	Braid Foil	Datacom Network	-30 ░C	75 ░C	95 % 100 %	Aluminum Copper Tinned	28 AWG	75 Ohms
Belden Inc. 179DTNH 0061000	Solid	304.8 m	1000 ft	0.3 mm	0.012 in	RG-179	0.106 in	2.69 mm	Foam Polyethylene (FPE)	Copper Bare	Low Smoke Polyphenylene Oxide (LSPPO)	Blue	79	Coaxial	Braid Foil	Datacom Network	-30 ░C	75 ░C	95 % 100 %	Aluminum Copper Tinned	28 AWG	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 28.5 AWG RG-179 1000.0' (304.80m) 75 Ohms
