XDMDK57A
ActiveSunLED

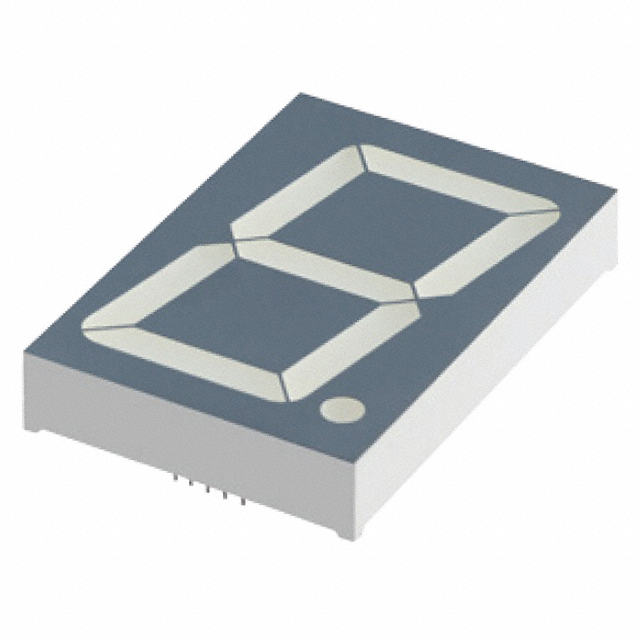

DISPLAY 7-SEG 2.3" SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XDMDK57A
ActiveSunLED
DISPLAY 7-SEG 2.3" SGL RED 10DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XDMDK57A |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 2.3 in |
| Digit/Alpha Size | 58.42 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 120 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 2.367 in |
| Package / Case | 60.1 mm |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 150 mW |
| Size / Dimension [x] | 2.756 in |
| Size / Dimension [x] | 70 mm |
| Size / Dimension [y] | 48 mm |
| Size / Dimension [y] | 1.89 in |
| Size / Dimension [z] | 0.472 " |
| Size / Dimension [z] | 12 mm |
| Voltage - Forward (Vf) (Typ) | 7.4 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.26 | |
| 10 | $ 9.50 | |||
| 100 | $ 7.89 | |||
| 500 | $ 7.19 | |||
| 1000 | $ 6.97 | |||
Description
General part information
XDMDK57 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 7.4V 10mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.367", 60.10mm)
