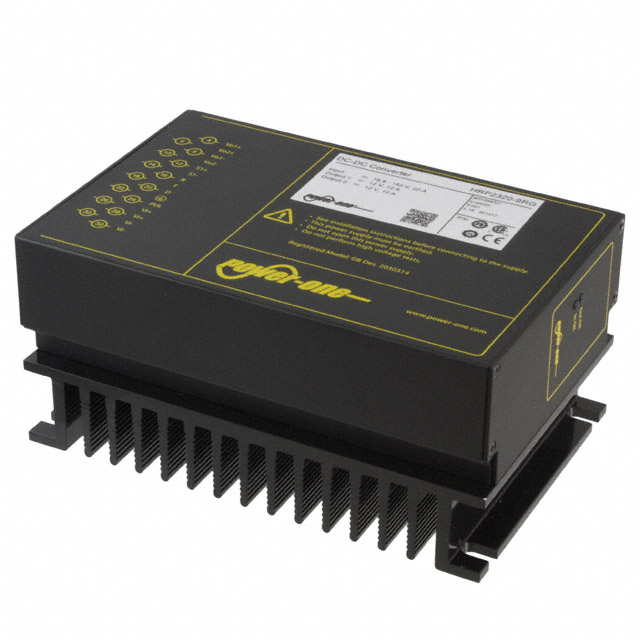

HRP2320-9RG

Active

EOS Power India Private Ltd

DC/DC CONVERTER 2X12V 288W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

DC/DC CONVERTER 2X12V 288W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Type	Current - Output (Max)	Current - Output (Max)	Applications	Mounting Type	Approval Agency	Efficiency	Number of Outputs	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
EOS Power India Private Ltd HRP2320-9RBG	12 V	Conformal Coated Enclosed	12 A	12 A	ITE (Commercial) Railway	Chassis Mount	cCSAus CE TUV	94.5 %	2	12 V	5.51 "	47.2 mm	140 mm	168 mm	6.61 in	1.86 in	16.8 V	288 W	-40 °C	71 °C	150 V
EOS Power India Private Ltd HRP2320-9RG	12 V	Conformal Coated Enclosed	12 A	12 A	ITE (Commercial) Railway	Chassis Mount	CE CSA EN IEC TUV UL	94.5 %	2	12 V		80 mm	111 mm	168.5 mm			16.8 V	288 W			150 V	6.63 "	3.15 "	4.37 "
EOS Power India Private Ltd HRP2320-9RB1G	12 V	Conformal Coated Enclosed	12 A	12 A	ITE (Commercial) Railway	Chassis Mount	cCSAus CE TUV	94.5 %	2	12 V	5.51 "	47.2 mm	140 mm	168 mm	6.61 in	1.86 in	16.8 V	288 W	-40 °C	71 °C	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 2 Output 12V 12V 12A, 12A 150V Input

Technical documentation and resources

No documents available
