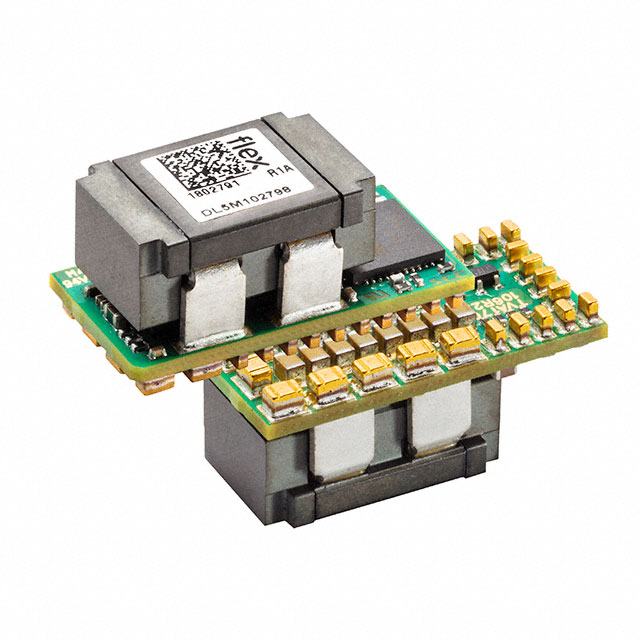

BMR4696001/001
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5V 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMR4696001/001
ActiveFlex Power Modules
DC DC CONVERTER 0.6-5V 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMR4696001/001 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 94.4 % |
| Features | Remote Sense, Adjustable Output, PMBus™, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-SMD Module |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 0.57 in |
| Size / Dimension [y] | 14.5 mm |
| Size / Dimension [z] | 0.23 " |
| Size / Dimension [z] | 5.8 mm |
| Standard Number | 62368-1 |
| Type | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 7.5 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 31.77 | |
| 5 | $ 31.52 | |||
| 10 | $ 31.28 | |||
| 25 | $ 30.79 | |||
| 50 | $ 29.32 | |||
| 100 | $ 26.88 | |||
| Digi-Reel® | 1 | $ 31.77 | ||
| 5 | $ 31.52 | |||
| 10 | $ 31.28 | |||
| 25 | $ 30.79 | |||
| 50 | $ 29.32 | |||
| 100 | $ 26.88 | |||
| Tape & Reel (TR) | 300 | $ 26.39 | ||
Description
General part information
BMR469 Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 50A 7.5V - 14V Input
