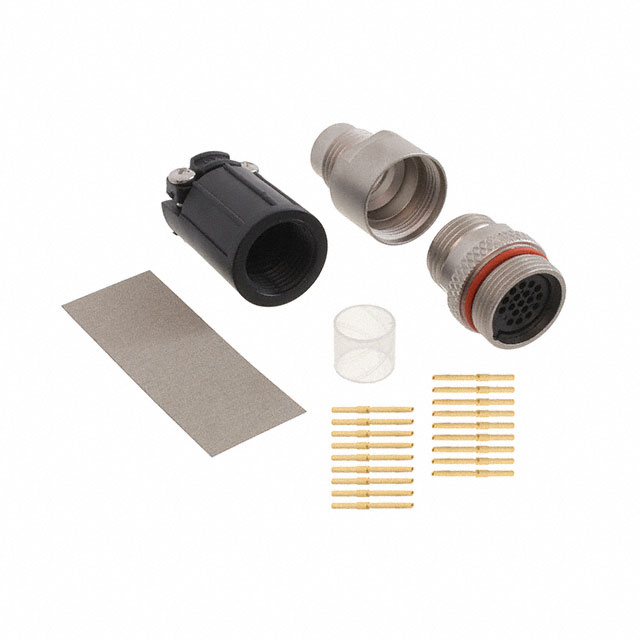

SF8980-18SG-530

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	SF8980-18SG-530

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.33 in
Cable Opening [custom]	8.38 mm
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Backshell
Ingress Protection	IP66/IP68
Insert Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Crimp

Part	Backshell Material, Plating	Contact Material	Shell Finish	Color	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Contact Finish - Mating	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Orientation	Primary Material	Shell Material	Termination	Mounting Type
Conxall/Switchcraft SF8980-18SG-530	Nylon Polyamide (PA)	Copper Alloy	Nickel	Black Silver	Backshell Cable Clamp	Receptacle Female Sockets	-40 °C	120 °C	Shielded	IP66/IP68	Gold	Polybutylene Terephthalate (PBT)	0.33 in	8.38 mm	18	Keyed	Metal	Brass	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

No documents available
