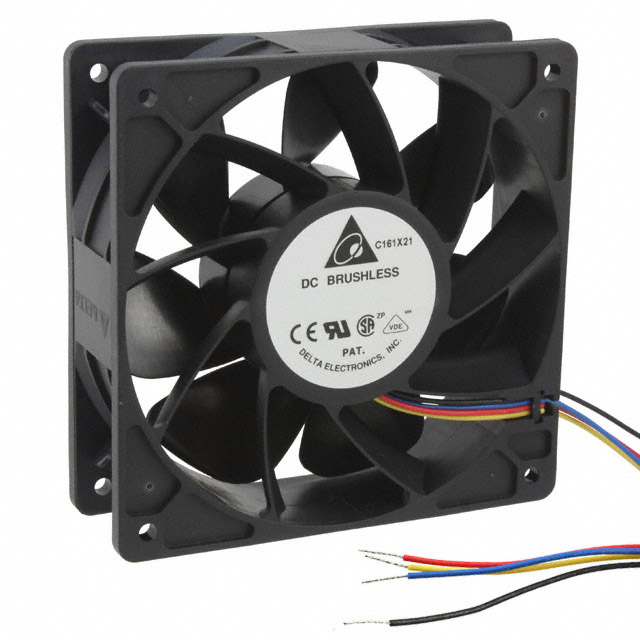

QFR1248GHE-SP01
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM
Deep-Dive with AI
Search across all available documentation for this part.
QFR1248GHE-SP01
ActiveDelta Electronics
DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QFR1248GHE-SP01 |
|---|---|
| Air Flow | 5.89 m³/min |
| Air Flow | 210.4 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.5 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 64 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 24 W |
| RPM | 6000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 291.4 Pa |
| Static Pressure | 1.17 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 52.8 |
| Voltage Range [Min] | 33 |
| Weight | 330.22 g |
| Weight | 0.728 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.79 | |
| 10 | $ 31.80 | |||
| 25 | $ 29.38 | |||
| 50 | $ 27.66 | |||
| 100 | $ 26.05 | |||
| 250 | $ 25.68 | |||
Description
General part information
QFR1248 Series
Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 210.4 CFM (5.89m³/min) 4 Wire Leads
