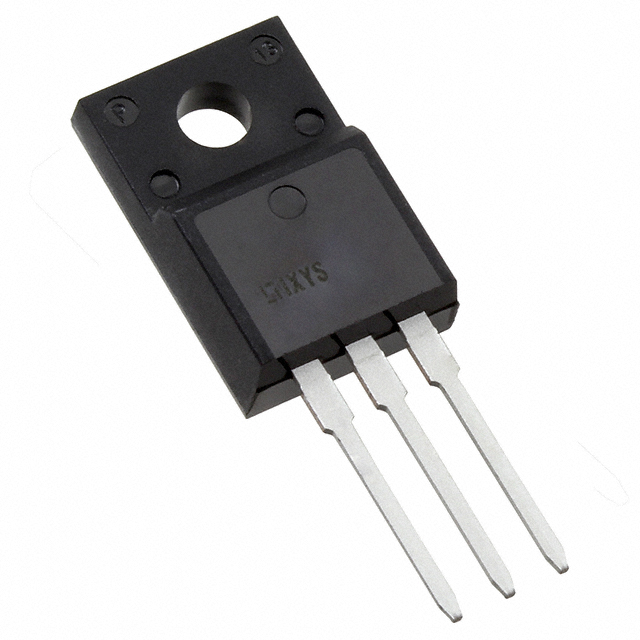

CS22-08IO1M

Active

IXYS

SCR 800V 25A TO220

Search across all available documentation for this part.

Active

IXYS

SCR 800V 25A TO220

Technical Specifications

Parameters and characteristics for this part

Specification	CS22-08IO1M

Current - Gate Trigger (Igt) (Max) [Max]	30 mA
Current - Hold (Ih) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	300 A, 325 A
Current - Off State (Max) [Max]	10 µA
Current - On State (It (AV)) (Max) [Max]	16 A
Current - On State (It (RMS)) (Max) [Max]	25 A
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
SCR Type	Standard Recovery
Supplier Device Package	TO-220 Isolated Tab
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	800 V
Voltage - On State (Vtm) (Max) [Max]	1.3 V

Part	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	SCR Type	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - Off State (Max) [Max]	Package / Case	Current - On State (It (AV)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]
IXYS CS22-12IO1M	1.2 kV	300 A 325 A	Through Hole	Standard Recovery	30 mA	TO-220 Isolated Tab	10 µA	TO-220-3 Full Pack Isolated Tab	16 A	1.3 V	1.3 V	60 mA	25 A
IXYS CS22-08IO1M	800 V	300 A 325 A	Through Hole	Standard Recovery	30 mA	TO-220 Isolated Tab	10 µA	TO-220-3 Full Pack Isolated Tab	16 A	1.3 V	1.3 V	60 mA	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 800 V 25 A Standard Recovery Through Hole TO-220 Isolated Tab
