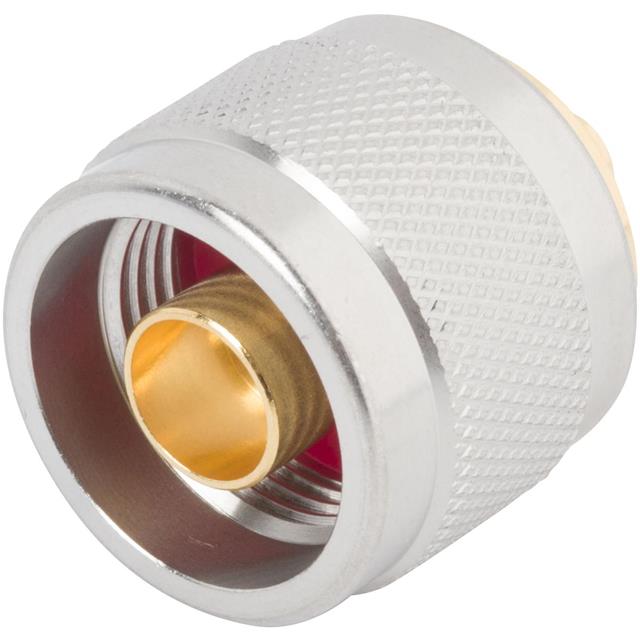

SF6505-6003

Active

Amphenol SV Microwave

CONN PN PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN PN PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF6505-6003

Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

Part	Impedance	Center Contact Plating	Contact Termination	Frequency - Max [Max]	Number of Ports	Cable Group	Cable Group	Center Contact Material	Shield Termination	Body Material	Connector Style	Mating Cycles	Mounting Type	Connector Type	Dielectric Material	Housing Color
Amphenol SV Microwave SF6505-6003	50 Ohms	Gold	Solder	18 GHz	1	RG-402 (.141" Flexible)	0.141 in	Brass	Solder	Stainless Steel	PN	500	Free Hanging (In-Line)	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
