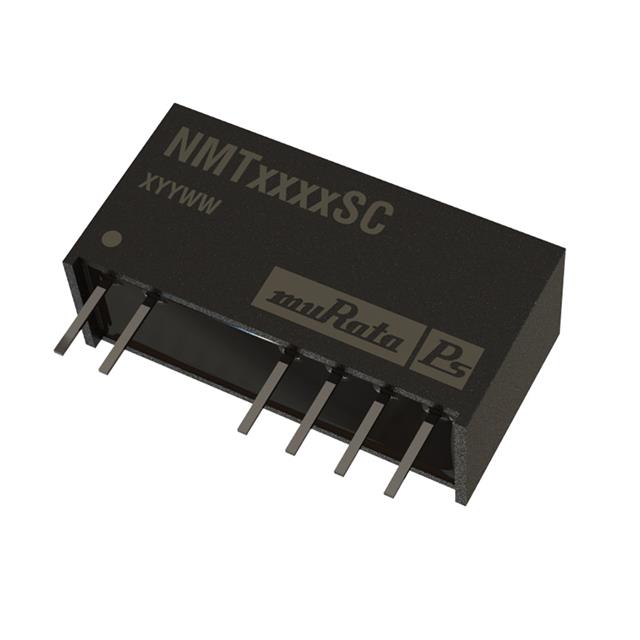

NMT0572SC
ObsoleteMurata Power Solutions Inc.
DC DC CNVRTR -24V -48V -72V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NMT0572SC
ObsoleteMurata Power Solutions Inc.
DC DC CNVRTR -24V -48V -72V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NMT0572SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 21 mA, 42 mA, 14 mA |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | 8-SIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 2 | -48 V |
| Voltage - Output 3 | -72 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NMT05 Series
Isolated Module DC DC Converter 3 Output -24V -48V -72V 42mA, 21mA, 14mA 4.5V - 5.5V Input
