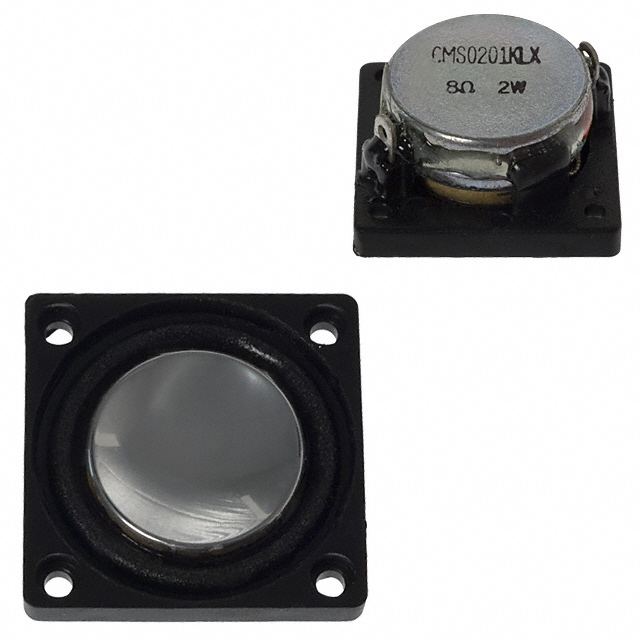

CMS0201KLX
ActiveCUI Devices
SPEAKER 8OHM 2W TOP PORT 80DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS0201KLX |
|---|---|
| Efficiency - dBA | 80 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 530 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 424 Hz |
| Height - Seated (Max) [Max] | 9.5 mm |
| Height - Seated (Max) [Max] | 0.374 in |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 4 W |
| Power - Rated | 2 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Size / Dimension [y] | 20 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.32 | |
| 10 | $ 5.22 | |||
| 25 | $ 4.81 | |||
| 40 | $ 4.52 | |||
| 80 | $ 4.23 | |||
| 440 | $ 3.75 | |||
Description
General part information
CMS0201 Series
8 Ohms General Purpose Speaker 2 W 424 Hz ~ 20 kHz Top Round, Square Frame
