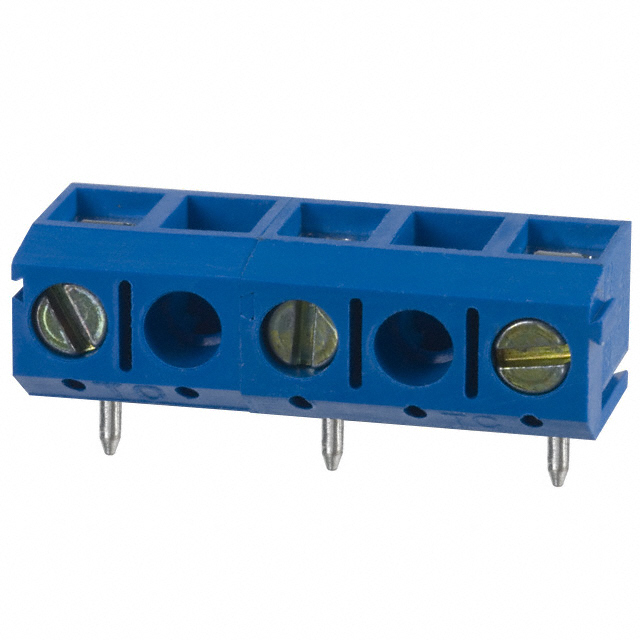

OSTTD031162

Active

On Shore Technology Inc.

TERM BLK 3POS TOP ENTRY 10MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 3POS TOP ENTRY 10MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTD031162

Clamp Material - Plating	Stainless, Steel
Contact Material - Plating [custom]	Brass
Current	16 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-33 °C
Pitch [x]	0.394 in
Pitch [x]	10 mm
Positions Per Level	3
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Screw Thread	M2.6
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Positions Per Level	Features	Clamp Material - Plating	Current	Wire Termination	Number of Levels	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Mounting Type	Screw Thread	Screw Material - Plating	Housing Material	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]
On Shore Technology Inc. OSTTD031162	3	Interlocking (Side)	Stainless Steel	16 A	Screw - Leaf Spring Wire Guard	1	Vertical with Board	14 AWG	22 AWG	-33 °C	120 °C	0.4 Nm	3.5 Lb-In	Through Hole	M2.6	Steel Galvanized - Chromate Plated	Polyamide (PA) Nylon	0.394 in	10 mm	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 0.80

General part information

3 Position Wire to Board Terminal Block Vertical with Board 0.394" (10.00mm) Through Hole

Technical documentation and resources

No documents available
