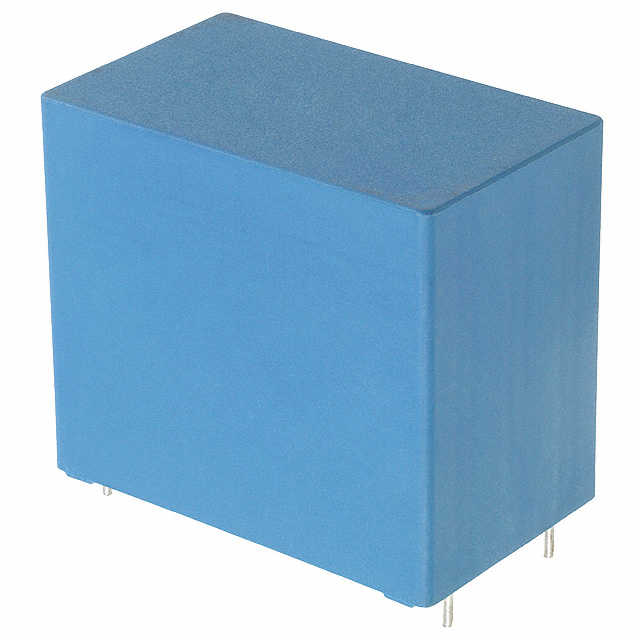

B32778G4107K000

Active

EPCOS - TDK Electronics

CAP FILM 100UF 450V PP 10%( 57.5 X 35 X 50MM) 52.5MM 0.0043 OHM 105°C BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32778G4107K000

Active

EPCOS - TDK Electronics

CAP FILM 100UF 450V PP 10%( 57.5 X 35 X 50MM) 52.5MM 0.0043 OHM 105°C BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B32778G4107K000

Applications	DC Link, DC Filtering
Capacitance	100 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.3 mOhms
Features	Long Life
Lead Spacing	52.5 mm
Lead Spacing	2.067 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial - 4 Leads
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Termination	PC Pins
Tolerance	10 %
Voltage Rating - DC	450 V

B32778G Series

Part	Tolerance	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Capacitance	Features	Dielectric Material	Mounting Type	Voltage Rating - DC	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC
EPCOS - TDK Electronics B32778G8606K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	35 mm	1.378 "	2.264 in	57.5 mm	52.5 mm	2.067 in	5.1 mOhm	60 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	800 V	PC Pins
EPCOS - TDK Electronics B32778G5606K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	30 mm	1.181 in	2.264 in	57.5 mm	52.5 mm	2.067 in	5.8 mOhms	60 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	575 V	PC Pins	1.772 in	45 mm
EPCOS - TDK Electronics B32778G4756J000	5 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	30 mm	1.181 in	2.264 in	57.5 mm	52.5 mm	2.067 in	5.6 mOhms	75 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	450 V	PC Pins	1.772 in	45 mm
EPCOS - TDK Electronics B32778G1276K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	35 mm	1.378 "	2.264 in	57.5 mm	52.5 mm	2.067 in	7.3 mOhms	27 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	1300 V	PC Pins			1.3 kV
EPCOS - TDK Electronics B32778G5606J000	5 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	30 mm	1.181 in	2.264 in	57.5 mm	52.5 mm	2.067 in	5.8 mOhms	60 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	575 V	PC Pins	1.772 in	45 mm
EPCOS - TDK Electronics B32778G4107K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	35 mm	1.378 "	2.264 in	57.5 mm	52.5 mm	2.067 in	4.3 mOhms	100 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	450 V	PC Pins
EPCOS - TDK Electronics B32778G1206K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	30 mm	1.181 in	2.264 in	57.5 mm	52.5 mm	2.067 in	9.7 mOhms	20 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	1300 V	PC Pins	1.772 in	45 mm	1.3 kV
EPCOS - TDK Electronics B32778G4756K000	10 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	30 mm	1.181 in	2.264 in	57.5 mm	52.5 mm	2.067 in	5.6 mOhms	75 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	450 V	PC Pins	1.772 in	45 mm
EPCOS - TDK Electronics B32778G1276J000	5 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	35 mm	1.378 "	2.264 in	57.5 mm	52.5 mm	2.067 in	7.3 mOhms	27 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	1300 V	PC Pins			1.3 kV
EPCOS - TDK Electronics B32778G8556J000	5 %	Radial - 4 Leads	DC Filtering DC Link	-40 °C	105 ░C	35 mm	1.378 "	2.264 in	57.5 mm	52.5 mm	2.067 in	5.6 mOhms	55 µF	Long Life	Metallized Polypropylene (PP)	Through Hole	800 V	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.96
		27	$ 30.38
		54	$ 27.70
		108	$ 24.82

Description

General part information

B32778G Series

100 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads

Documents
