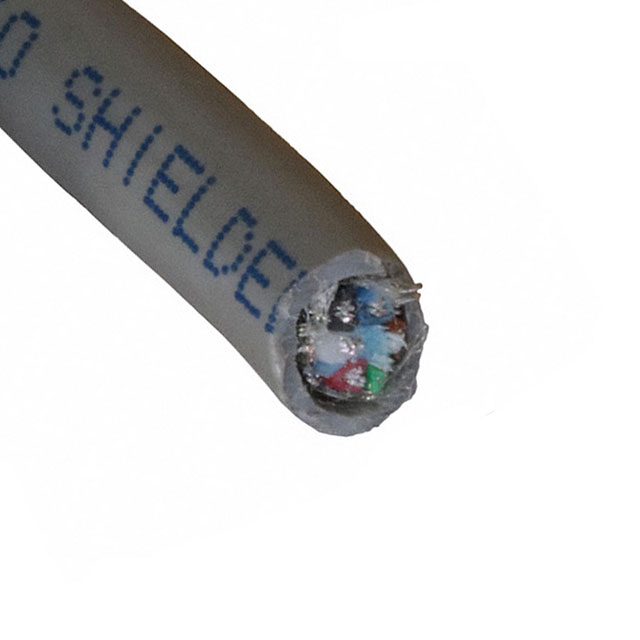

M2441 SL005
ActiveALPHA WIRE
CABLE 6CON 24AWG SLATE SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
M2441 SL005
ActiveALPHA WIRE
CABLE 6CON 24AWG SLATE SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2441 SL005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.66 mm |
| Jacket (Insulation) Diameter [diameter] | 0.223 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 195.96 | |
| 2 | $ 186.41 | |||
| 3 | $ 181.01 | |||
| 5 | $ 174.39 | |||
| 7 | $ 170.14 | |||
| 10 | $ 165.73 | |||
| 25 | $ 154.81 | |||
| 50 | $ 152.69 | |||
Description
General part information
M2441 Series
6 Conductor Multi-Conductor Cable Slate 24 AWG Foil, Braid 100.0' (30.5m)
