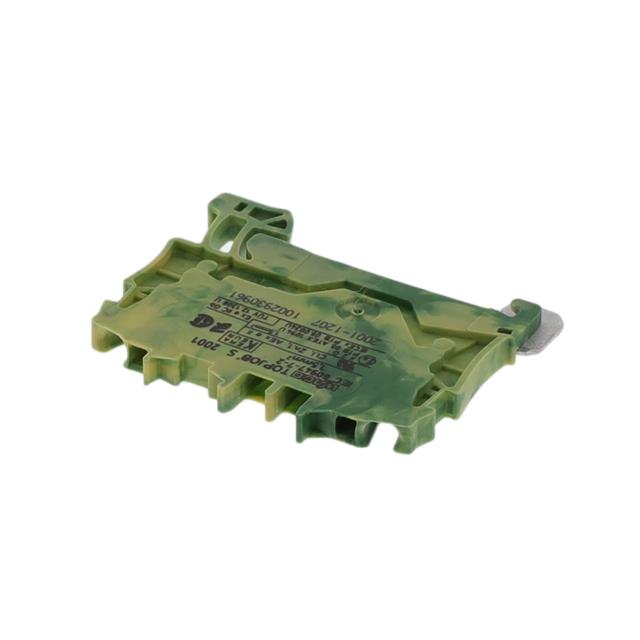

2001-1207
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A
Deep-Dive with AI
Search across all available documentation for this part.
2001-1207
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 14 AWG, 2.5 MM², CLAMP, 18 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2001-1207 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [Max] | 11 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 4.2 mm |
| Termination Style | Push In, Spring |
| Type | Ground, Earth |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.75 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
2001-120 Series
The 2001-1207 from Wago is a 2 conductor ground terminal block. The housing material is polyamide (PA 6.6). It has 2 connection points and 1 potential point and it is suitable for Ex e II applications.
