SLCS-370-8-01

Active

Essentra Access Solutions

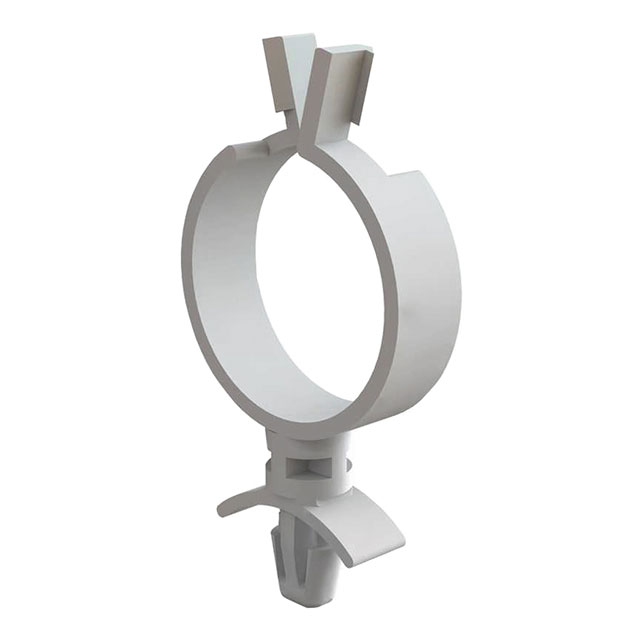

FASTENER, STANDOFF LOCKING CABLE CLIP, 0.312 ", NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 0.56 "

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SLCS-370-8-01

Active

Essentra Access Solutions

FASTENER, STANDOFF LOCKING CABLE CLIP, 0.312 ", NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 0.56 "

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLCS-370-8-01

Color	Natural
Height [z]	29.46 mm
Height [z]	1.16 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness [Max]	0.078 in
Panel Thickness [Max]	1.98 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Type	Clip, Wire Saddle
Type Attributes	Round, Locking, Standoff
Width	0.25 in
Width	6.35 mm

SLCS Series

Part	Panel Hole Size	Panel Hole Size	Type Attributes	Mounting Type	Height [z]	Height [z]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Type	Width	Width	Material Flammability Rating	Material	Opening Size [custom]	Opening Size [custom]	Color	Opening Size [z]	Opening Size	Opening Size [z]
Essentra Access Solutions SLCS-500-4-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	26.42 mm	1.04 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.438 in	11.13 mm	Natural
Essentra Access Solutions SLCS-750-8-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	39.12 mm	1.54 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6			Natural	0.688 in	17.48 mm
Essentra Access Solutions SLCS-370-16-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	42.16 mm	1.66 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6			Natural
Essentra Access Solutions SLCS-370-8-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	29.46 mm	1.16 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6			Natural
Essentra Access Solutions SLCS-250-16-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	38.86 mm	1.53 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6			Natural	0.188 in		4.78 mm
Essentra Access Solutions SLCS-370-4-01	4.75 mm	0.187 in	Locking Round Standoff	Arrowhead Winged	23.11 mm	0.91 in	0.078 in	0.031 "	0.79 mm	1.98 mm	Clip Wire Saddle	0.25 in	6.35 mm	UL94 V-2	Polyamide (PA66) Nylon 6/6			Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.61
		10	$ 0.47
		25	$ 0.42
		50	$ 0.39
		100	$ 0.36
		250	$ 0.32
		500	$ 0.30
		1000	$ 0.28
		3000	$ 0.25
Newark	Each	1	$ 0.60
		10	$ 0.45
		25	$ 0.37
		50	$ 0.36
		100	$ 0.34
		250	$ 0.31

Description

General part information

SLCS Series

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.313" (7.95mm)
