1750JA
ActiveHammond Manufacturing

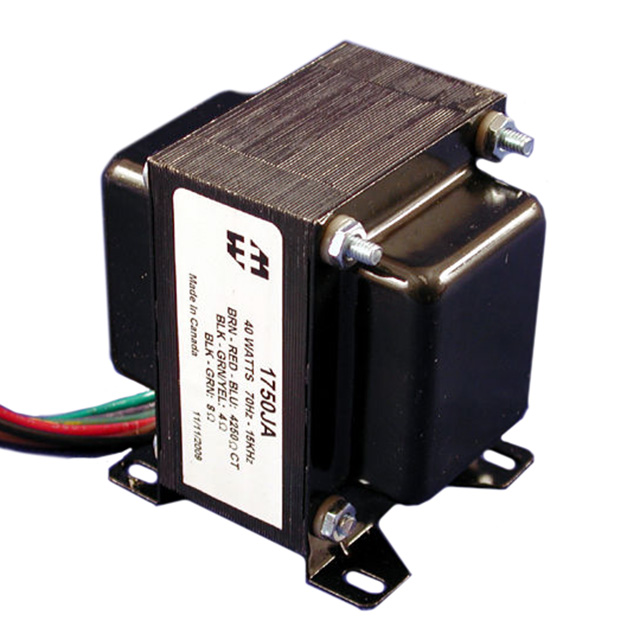

AUDIO TRANSFORMER 65.19:2/65.19:2.82 2000VRMS 82OHM/108.3OHM PRIM. DCR 0.253OHM/0.462OHM SEC. DCR 6 TERMINAL WIRE LEAD FLANGE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
1750JA
ActiveHammond Manufacturing
AUDIO TRANSFORMER 65.19:2/65.19:2.82 2000VRMS 82OHM/108.3OHM PRIM. DCR 0.253OHM/0.462OHM SEC. DCR 6 TERMINAL WIRE LEAD FLANGE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1750JA |
|---|---|
| DC Resistance (DCR) - Primary | 108.3 Ohm, 82 Ohm |
| DC Resistance (DCR) - Secondary [custom] | 253 mOhm |
| DC Resistance (DCR) - Secondary [custom] | 462 mOhm |
| Frequency Range [Max] | 15 kHz |
| Frequency Range [Min] | 70 Hz |
| Frequency Response | 1 dB |
| Height - Seated (Max) [Max] [z] | 3.319 in |
| Height - Seated (Max) [Max] [z] | 84.3 mm |
| Impedance - Primary (Ohms) | 4.25kCT |
| Impedance - Secondary (Ohms) | 4 Ohms, 8 Ohms |
| Mounting Type | Chassis Mount |
| Power Level | 40 W |
| Size / Dimension [x] | 63.5 mm |
| Size / Dimension [x] | 63.5 mm |
| Size / Dimension [y] | 80.01 mm |
| Size / Dimension [y] | 3.15 in |
| Termination Style | Wire Leads |
| Voltage - Isolation | 2000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 76.42 | |
| 10 | $ 69.30 | |||
| 25 | $ 67.41 | |||
| 50 | $ 66.23 | |||
| 100 | $ 65.23 | |||
Description
General part information
1750J Series
4.25kCT Impedance Primary Ohms 4, 8 Impedance Secondary Ohms Audio Transformer 70Hz ~ 15kHz Chassis Mount
