JF15CP2A

Active

NKK Switches

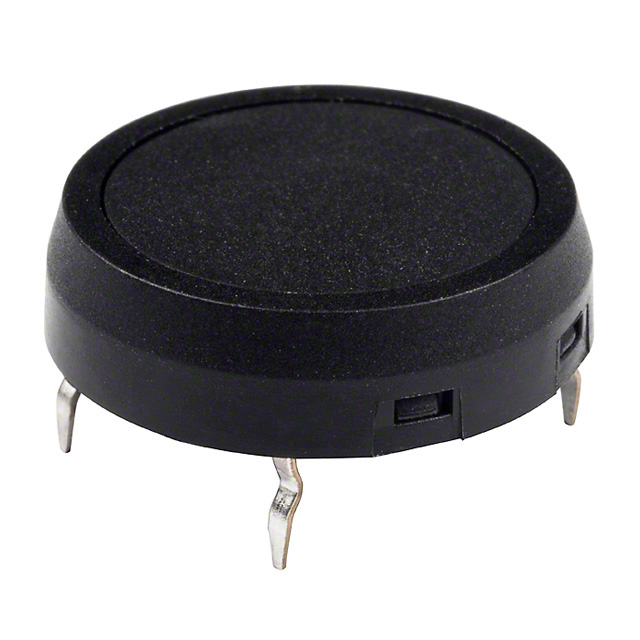

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 300 GF, 50MA AT 24VDC

Search across all available documentation for this part.

Active

NKK Switches

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 300 GF, 50MA AT 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	JF15CP2A

Actuator Height off PCB, Vertical [z]	5.08 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Outline [diameter]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.4 mm
Termination Style	PC Pin

Part	Illumination	Features	Switch Function	Contact Rating @ Voltage	Actuator Material	Outline [diameter]	Circuit	Operating Force	Switch Travel	Actuator Type	Actuator Orientation	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Mechanical Life	Mounting Type
NKK Switches JF15CP2D	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2C	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2F	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP1G	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2A	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2G	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
